Vibration Reduction Performance
As I have already pointed out earlier, the Nikon Z DX 16-50mm VR comes with optical image stabilization that Nikon calls “Vibration Reduction”. Per Nikon, the VR mechanism is supposed to provide up to 4.5 stops of compensation when shooting hand-held, which is basically on par with other modern Nikon lenses with VR.
When shooting with the Nikon Z50, I rarely relied on the tripod, because I wanted to test how good VR on this lens really is. Most of the images in this review (aside from ones shoot at very long exposures of 1 sec and longer) were captured hand-held. Here is an image I captured at 1/3 of a second at 50mm (75mm full-frame equivalent):
NIKON Z 50 + NIKKOR Z DX 16-50mm f/3.5-6.3 VR @ 50mm, ISO 400, 1/3, f/6.3
This works out to a bit over four stops of compensation with the reciprocal rule, which is pretty impressive. I had to bump up ISO to 400 in the above case since there was very little ambient light to work with.
Recommendations
Get one! More specifically, get one as part of a kit as a promotional item for very little extra money. This is one of Nikon’s Best Lenses, and even better, it’s tiny and inexpensive and focuses fast and super close.
I got my 16-50mm at B&H, where it also comes in silver. (Actually I got the kit with both the 16-50mm and 50-250mm lenses). I’d also get it at Adorama, at Amazon, at Crutchfield or at eBay if you know How to Win at eBay. It also comes as part of a kit at B&H, at Adorama, at Amazon and at Crutchfield.
I use a clear (UV) protective filter instead of a cap so I’m always ready to shoot instantly. I only use a cap when I throw this in a bag with other gear without padding — which is never. The UV filter never gets in the way, and never gets lost, either.
Use the excellent and inexpensive B+W 46mm 010 , or splurge on the multicoated B+W 010M or use a multicoated Hoya filter.
If you want a fancy filter, go for the LEICA 13033 E46 UVa II in black, the LEICA 13034 E46 UVa II in silver or the Fujifilm PRF-46 Protector Filter.
All these filters are just as sharp and take the same pictures, the difference is how much abuse they’ll take and stay clean and stay in one piece. Filters last a lifetime of more, so there’s no need to cheap out on them. The basic Hoya 46mm UV is honestly all you need.
This 100% all-content website’s biggest source of support is when you use those or any of when you get anything, regardless of the country in which you live. Nikon does not seal its boxes in any way, so never buy at retail or any other source not on since you’ll have no way of knowing if you’re missing accessories, getting a defective, damaged, returned, , store demo or used lens. I use the stores I do because they ship from secure remote warehouses where no one gets to touch your new camera before you do. Buy only from the for the best prices, service, return policies and selection.
Thanks for helping me help you!
Ken.
Ken Rockwell. All rights reserved. Tous droits réservés. Alle Rechte vorbehalten.
Галерея Nikon Z FC
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 50мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/500, ISO100, f/6.3, 50 мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 50мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 50мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/500, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/500, ISO100, f/6.3, 33мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/500, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/500, ISO100, f/6.3, 33мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/500, ISO100, f/6.3, 50мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/500, ISO100, f/6.3, 50мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 43мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 20мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 17мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/250, ISO100, f/6.3, 50мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/125, ISO100, f/6.3, 50мм. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/2000, ISO100, f1.8. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/2000, ISO100, f1.8. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/2000, ISO100, f1.8. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/2000, ISO100, f1.8. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/2000, ISO100, f1.8. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/2000, ISO100, f1.8. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/15, ISO100, f22. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/15, ISO100, f22. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/100, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + 16-50/3.5-6.3. Параметры: 1/100, ISO100, f/6.3, 16мм. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/200, ISO100, f/2.2. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/200, ISO100, f/2.2. Павел Молчанов
Nikon Z fc + Nikkor 50/1.8. Параметры: 1/200, ISO100, f/2.2. Павел Молчанов
— Исходники RAW для личного ознакомления
Lens Handling and Build Quality
Being a budget, consumer-grade kit lens, the Nikon Z DX 16-50mm VR has an all-plastic construction – from its filter thread and the lens barrel, all the way to its mount. Although the plastic seems to be quite durable, it does not feel as thick as plastic that Nikon uses on its full-frame Z-mount lenses. That’s expected, since Nikon engineers were probably doing what they could to shed off as much weight as possible – after-all, this is the kit Nikon wants to bundle with its mirrorless DX cameras.
NIKON Z 50 + NIKKOR Z DX 16-50mm f/3.5-6.3 VR @ 16mm, ISO 100, 1/60, f/5.6
When the lens is in its retracted position, turning on the camera shows a prompt that asks to extend the lens before shooting. Rotating the zoom ring counter-clockwise (when viewed from the top back) extends the lens barrel considerably, and once you reach 16mm, the lens clicks into place, allowing the camera to shoot. Similar to the Nikon Z 24-70mm f/4 S, you can gain a few millimeters of focal length below 16mm by slowly rotating the lens before it clicks into place, at the expense of image quality (especially in the corners). Zooming towards 24-26mm reduces the lens barrel to its shortest physical size, which extends again starting from around 35mm. The lens barrel is slighly shorter at 50mm compared to 16mm. The zoom ring is quite smooth and comes to a hard stop at 50mm. There does not seem to be any play in either direction.
NIKON Z 50 + NIKKOR Z DX 16-50mm f/3.5-6.3 VR @ 37mm, ISO 100, 1/30, f/5.6
Thanks to the focus-by-wire design of all Nikon Z mount lenses, the focus ring is actually a programmable control ring. By default, it adjusts lens focus, but you can set it up to control lens aperture or exposure compensation through the camera menu.
The plastic lens mount has a total of four locking ears, which do a good job of keeping the lens tightly attached to the camera body. Although there is no rubber gasket on the back of the lens to keep dust off the camera mount, the lens barrel is a little extruded, which helps seal the lens against the mount. Not ideal, but it works quite well in keeping dust particles from entering the camera.
NIKON Z 50 + NIKKOR Z DX 16-50mm f/3.5-6.3 VR @ 16mm, ISO 100, 1/125, f/5.6

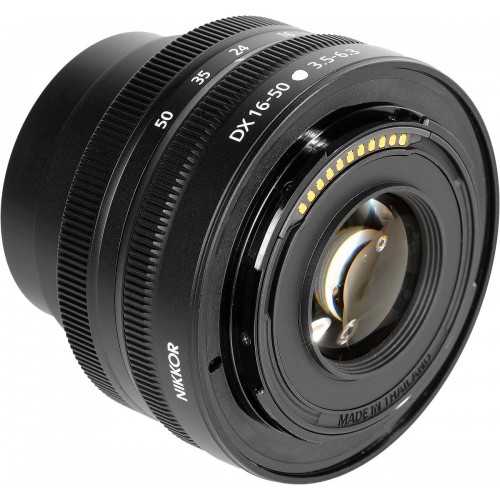

The back of the lens has a visible glass element that stays in place when zooming in or out, and there are no visible holes that show the inner parts of the lens. Although the lens is not weather-sealed like most other high-quality Z lenses, all components seem to fit quite tightly, which should reduce the chance of dust and moisture getting into the lens. I used the lens extensively when traveling in Jordan and Turkey, and I did not notice any visible dust particles on the front or rear lens elements.
The front element of the lens is easy to reach and clean. The 46mm filter thread is quite normal for a lens of this size. I used a rather thick 46mm B+W polarizing filter that I owned for many years, which I was able to mount and dismount easily when shooting in the field. As discussed in the Vignetting section of this review, the thickness of the polarizing filter did not make the corners look darker, even at 16mm position.
NIKON Z 50 + NIKKOR Z DX 16-50mm f/3.5-6.3 VR @ 16mm, ISO 500, 1/25, f/5.6
Due to the collapsible design, the lens does not come with a lens hood.
Sharp Results
I tested the Z 16-50mm with the 20.9MP Z 50 and software from Imatest. At 16mm f/3.5 it delivers excellent resolution (2,580 lines) averaged across the frame. Edges and corners are quite soft, though—you’ll want to set the lens somewhere between f/5.6 and f/11 for the shots where edge and corner resolution matters. Average resolution also improves—the lens nets outstanding contrast, as good as you can expect from the Z 50’s sensor—through f/11. Diffraction slightly softens images at f/16 and f/22.
At the midpoint of the zoom, around 35mm, the maximum aperture is f/5.3. Resolution is still excellent (2,630 lines), with edge performance that lags behind, but is still pretty good (1,975 lines). Again, for landscape shots, f/8 and f/11 offer the best resolution from center to edge, with excellent performance through the frame. The aperture narrows all the way to f/36 at this focal length, but results are almost soft focus (1,220 lines).
At the 50mm setting, the maximum aperture is just f/6.3. Aside from a loss of light gathering, though, results are just about the same as at 35mm. Simply put, the lens has no problem delivering as much resolution as the Z 50’s sensor can manage. That said, it’s by no means a camera that leads its class in resolution—Canon offers similar models with 32.5MP chips, and you can only imagine that Nikon will want to better its rival in the future.
Images show no barrel or pincushion distortion, and while you may notice a slight vignette at 16mm f/3.5, it’s not an issue when zoomed or when the aperture is narrowed. It’s possible to turn off vignette correction, which nets a more visible effect at 16mm. You may like it for environmental portraits and other shots where you want a natural frame to help isolate your subject.
f/3.5~6.3 Z DX VR (2019-)
Z9 Z8 Z7 II Z6 II Z7 Z6 Z5 Z fc Z50 Z30
Z System Z Lenses All Nikon Lenses

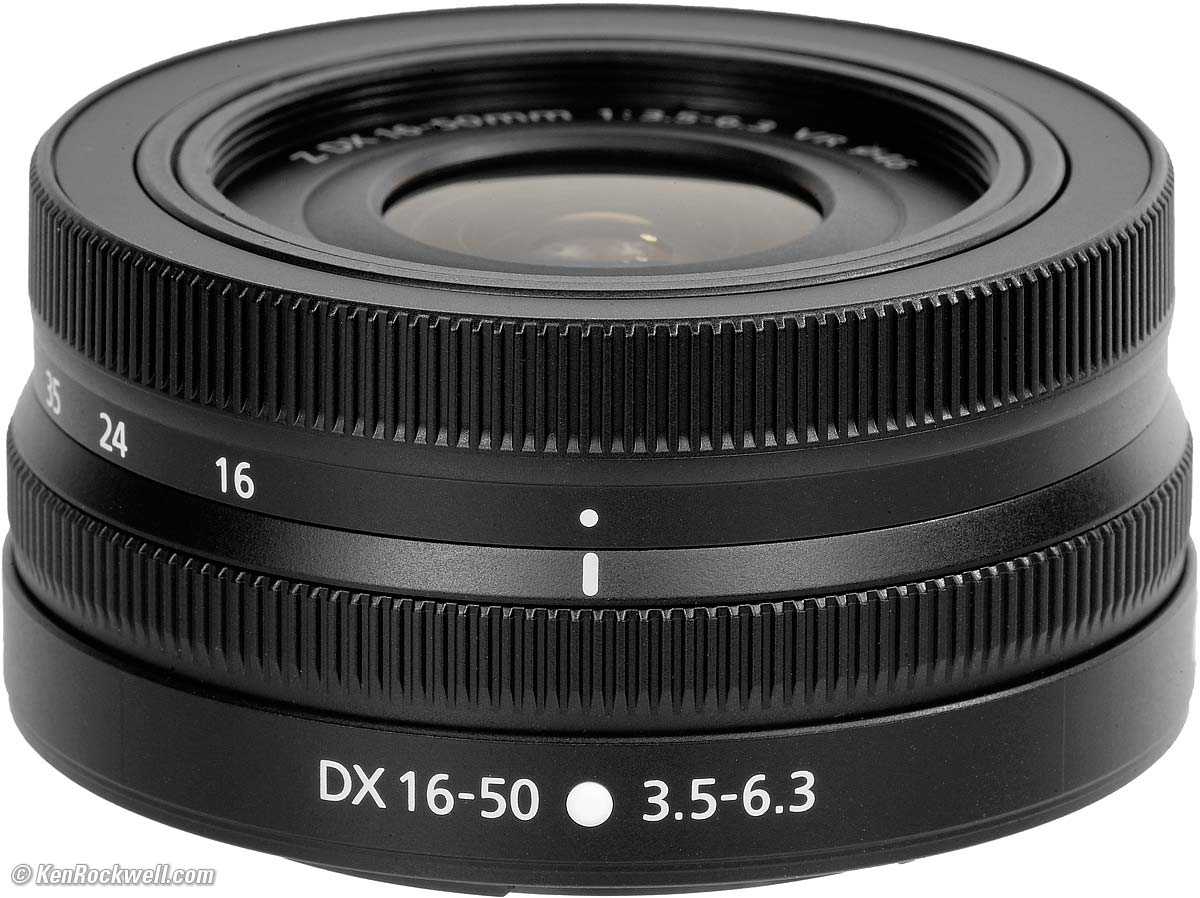

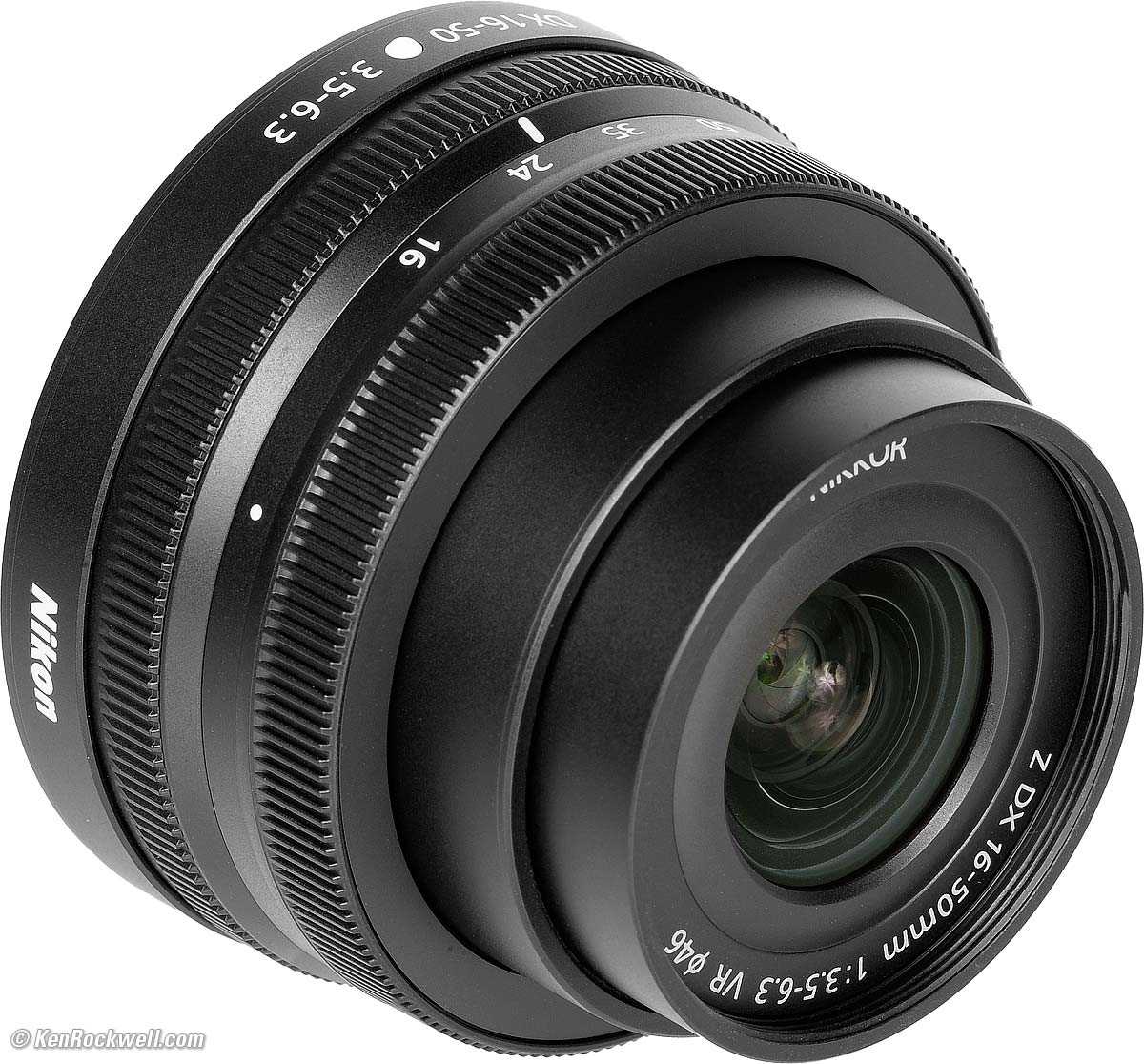

Nikon Z DX 16-50mm f/3.5-5.6 VR, collapsed (46mm filters, 4.6 oz./131g, 0.7’/0.2m close focus, $297, less if ordered as part of a kit, also comes in silver). bigger. I got mine at B&H (I actually got the kit with both the 16-50mm and 50-250mm lenses). I’d also get it at Adorama, at Amazon, at Crutchfield or at eBay if you know How to Win at eBay. It also comes as part of a kit at B&H, at Adorama, at Amazon and at Crutchfield.
This all-content, junk-free website’s biggest source of support is when you use those or any of when you get anything, regardless of the country in which you live. Thanks for helping me help you!
July 2021 Nikon Mirrorless Mirrorless Lenses All Nikon Lenses All Reviews
Buy Now
Used Nikon D5500
Heavily Used £149
Used Nikon AF-S Nikkor 400mm f/2.8E FL ED VR
Heavily Used £2799
Used Nikon AF-S DX Nikkor 17-55mm f/2.8G I…
Heavily Used £134
Used Nikon D5000
Heavily Used £69
Used Nikon D3500
Heavily Used £154
Used Nikon AF Nikkor 85mm f/1.8D
Like New £214
Used Nikon AF-S Nikkor 18-35mm f/3.5-4.5G…
Like New £224
Used Nikon Nikkor Z 50mm f/1.8 S
Like New £479
Used Nikon AF-S Nikkor 14-24mm f/2.8G IF-ED
Like New £679
Used Nikon Nikkor Z 40mm f/2
Like New £199
Sell or trade used photo and video kit with MPB
|
We don’t have the latest price however the link below will take you to the most relevant items. Nikon Nikkor Z DX 16-50mm f/3.5-6.3 VR |
We don’t have the latest price however the link below will take you to the most relevant items. Nikon Nikkor Z DX 16-50mm f/3.5-6.3 VR |
We transform the way that people buy, sell and trade in photo and video kit. USED NIKON |
Support this site by making a Donation, purchasing Plus Membership, or shopping with one of our affiliates:
Amazon UK,
Amazon US,
Amazon CA,
ebay UK,
MPB. It doesn’t cost you anything extra when you use these links, but it does support the site, helping keep ePHOTOzine free to use, thank you.
ADVERTISEMENT
Other articles you might find interesting…
Nikkor Z DX 24mm F/1.7 Lens Review
Fujifilm XF 8mm F/3.5 Review
Canon RF-S 55-210mm Review
SIGMA AF 14mm f/1.4 DG DN | Art Lens Review
Best Third Party Nikon F Lenses (DSLR)
Astrodesign & Samyang Join The L-Mount Alliance
Best Canon EF And EF-S Lenses
Sony FE 70-200mm f/4 G OSS II Lens Announced — Take A Look A…
Collapsible Design
The DX 16-50mm is a collapsible lens—its optics retract into the barrel when not in use. When attached to the Z 50, I’m able to carry the pair in the pocket of a winter coat without a problem. The lens itself measures 1.3 by 2.8 inches when collapsed, weighs just 4.8 ounces, and supports 46mm front filters.
Our Experts Have Tested 35 Products in the Lenses Category This Year
Since 1982, PCMag has tested and rated thousands of products to help you make better buying decisions. See how we test.
The compact design omits a lens hood, but I didn’t have issues with flare, even when the sun was right at the edge of the frame. Apart from the optical glass, construction is all plastic, but it’s on the higher end of quality for the material. Even so, I would have preferred to see Nikon include a metal lens mount.
Similar Products
Nikon says the lens has the same level of dust and splash protection as the Z 50 and many of its other sub-$1,000 camera models. I’d feel comfortable using it in light precipitation, but the sealing isn’t on the same level as full-frame lenses and cameras.
There are two control rings on the lens. The zoom is further forward. It turns freely from 16-50mm, but offers some resistance when moving in and out of the collapsed position. Thankfully there’s no lock switch to deal with—you just need to apply a little torque.
The manual focus ring sits farther back. While you’ll likely opt for autofocus most of the time, it’s good that it’s comfortable to reach. The focus response changes with the speed you turn the ring—a quicker twist makes a more dramatic change in focus, and you’ll use slow adjustment for precise changes.
You can also use the ring as an additional control, with the option to adjust EV or lens aperture. Unfortunately, the ring is just a little too sensitive. I found it hard to make third-stop EV or aperture adjustments without taking care to turn the ring ever so slightly. This is an issue across the Z line, and one that I hope Nikon is able to address via firmware updates.
The macro focus capability is modest. The lens focuses as close as 7.9 inches, netting 1:5 life-size macro magnification when zoomed all the way in. It’s pretty typical, just about matching what similar lenses for Fujifilm and Sony systems can do. Nikon’s take does minimize focus breathing, a change in angle of view when adjusting focus, which is desirable for video work.
Image stabilization is beneficial for both video and still imaging. It smooths out jittery motion in handheld footage, and makes it possible to get handheld shots at longer shutter speeds, so you can blur motion or work at a lower ISO. It’s included in the lens, a good thing as the Z 50 body doesn’t have a stabilized sensor.
Reasons to Buy Nikon Nikkor Z DX 16-50mm F3.5-6.3 VR Lens
Here we’ve included a summary of the advantages and disadvantages of the Nikon Nikkor Z DX 16-50mm F3.5-6.3 VR lens in a list form to help you determine whether it offers the features you need.
PROs
| Optical Image Stabilization |
| Autofocus |
| Minimum focus distance of 0.2m / 7.9 inch |
| Light weight at only 135g / 4.8 oz |
Report a correction
Buy Nikon Z 16-50mm F3.5-6.3 from or B&H PHOTO
CONs
| No Weather Sealing |
| Hood is not supplied |
| Lens Extents while zooming |
| Slow Aperture at Tele end |
| Variable Aperture |
Lens Mount
Nikon Z 16-50mm F3.5-6.3 is compatible with cameras that have a Nikon Z lens mount. Some of the latest released cameras that are compatible with the Nikon Z lenses are Nikon Z30, Nikon Z fc and Nikon Z50.

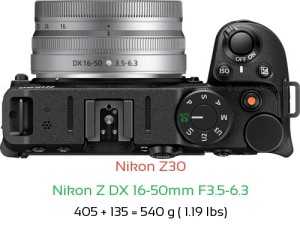

Nikon Z30 with the Nikon Z 16-50mm F3.5-6.3 Lens
Nikon Z fc with the Nikon Z 16-50mm F3.5-6.3 Lens
Nikon Z50 with the Nikon Z 16-50mm F3.5-6.3 Lens
Size, Weight and Filter Thread
Size and weight is a very important decision factor when searching for your next lens. Nikon Z 16-50mm F3.5-6.3 has a maximum diameter of 70mm and total length of 32mm when not extended. It weighs 135g / 4.8 oz.
Below you can find a scaled side-by-side image of Nikon Z 16-50mm F3.5-6.3 and Nikon Z 28mm F2.8 (Nikon Z mount) to get a better idea of how their sizes compare in real life. Check the detailed comparison of these two lenses here.
Comparison image of the Nikon Z 16-50mm F3.5-6.3 and the Nikon Z 28mm F2.8 Size and Weight
Nikon Z 16-50mm F3.5-6.3 has a filter thread of 46mm. Below are links to the filters that we recommend you to consider for your Nikon Z 16-50mm F3.5-6.3:
Nikon Z 16-50mm F3.5-6.3 Lens Top View
Optical Image Stabilization
The Nikon Z 16-50mm F3.5-6.3 features an optical image stabilization system which helps to reduce the blur that occurs due to shaking during hand-held shooting.
Zoom Method
Nikon Z 16-50mm F3.5-6.3 features Rotary (extending) zoom method where the length of the lens changes as you zoom in or out. This makes it possible to design the lens with a smaller minimum length ( generally when it is zoomed out) compared to internal zoom lenses. The disadvantages of this design are being harder to seal against dust and moisture, weight balance shifting while zooming and zoom creep in certain lenses.
Nikon Z 16-50mm F3.5-6.3 Extended State
Maximum Magnification Ratio
Nikon Z 16-50mm F3.5-6.3 has a Max Magnification Ratio of 0.2x and has a minimum focusing distance of 0.2m.
Below are the 3 Standard Zoom type Nikon Z mount lens alternatives with highest max magnification ratios:
- Nikon Z 24-120mm F4 S: 0.39x — (Compare)
- Nikon Z 28-75mm F2.8 : 0.34x — (Compare)
- Nikon Z 24-70mm F4 S: 0.3x — (Compare)
Aperture
Nikon Z 16-50mm F3.5-6.3 is a variable aperture lens with a max aperture of f3.5 and a minimum aperture of f16 at 16mm, and a max aperture of f6.3 and minimum aperture of f16 at 50mm .
| Focal Length | Max Aperture | Min Aperture |
|---|---|---|
| 16mm | F3.5 | F16 |
| 50mm | F6.3 | F16 |
Optical Formula
Nikon Z 16-50mm F3.5-6.3’s optical formula consists of 9 elements in 7 groups . Following special elements are used in this design:
- 1 ED
- 4 aspherical elements
- Super Integrating Coating
Popular Comparisons of Nikon Z 16-50mm F3.5-6.3
Top Alternatives of Nikon Z 16-50mm F3.5-6.3 Lens
| Model | Coverage | Weight | Focusing | Street Price | |
|---|---|---|---|---|---|
|
Nikon Nikkor Z 28mm F2.8 Compare |
35mm FF | 155 g / 0.34 lb | AF | ||
|
Nikon NIKKOR Z DX 18-140mm f3.5-6.3 VR Compare |
APS-C / DX | 315 g / 0.69 lb | AF | ||
|
Nikon Nikkor Z 24-50mm F4-6.3 Compare |
35mm FF | 195 g / 0.43 lb | AF | ||
|
Nikon AF-P DX NIKKOR 18-55mm F3.5-5.6G VR Compare |
APS-C / DX | 205 g / 0.45 lb | AF | ||
|
Nikon Nikkor Z 40mm F2 Compare |
35mm FF | 170 g / 0.37 lb | AF | ||
|
Nikon Nikkor Z DX 50-250mm F4.5-6.3 VR Compare |
APS-C / DX | 405 g / 0.89 lb | AF | ||
|
Nikon Nikkor Z 24-70mm F4 S Compare |
35mm FF | 500 g / 1.10 lb | AF | ||
|
Canon EF-M 15-45mm F3.5-6.3 IS STM Compare |
APS-C / DX | 130 g / 0.29 lb | AF |
Уход за линзами
- Удаление пыли обычно достаточно для очистки стеклянных поверхностей объектива.
- Пятна, отпечатки пальцев и другие жирные пятна можно удалить с поверхности объектива с помощью мягкой чистой хлопчатобумажной ткани или салфетки для чистки объектива, слегка смоченной небольшим количеством этанола или чистящего средства для объектива. Аккуратно протрите от центра к краям круговыми движениями, стараясь не оставлять разводов и не касаться линзы пальцами.
- Никогда не используйте для очистки объектива органические растворители, такие как растворитель для краски или бензол.
- Фильтры нейтрального цвета (NC) (приобретаются отдельно) и т.п. можно использовать для защиты передней линзы.
- Если объектив не будет использоваться в течение длительного времени, храните его в прохладном сухом месте, чтобы предотвратить появление плесени и ржавчины. Не хранить под прямыми солнечными лучами или с нафталиновыми или камфорными шариками от моли.
NIKKOR Z DX 16-50mm f/3.5-6.3 VR primary features
- A compact and lightweight body with a total length*1 of approximately 32 mm and weight of approximately 135 g
- Adoption of a retractable mechanism that works without buttons enables immediate shooting by simply rotating the zoom ring
- Support for a convenient zoom range covering the 16-50 mm*2 focal lengths
- Superior resolution that enables faithful rendering of even the finest details throughout the entire zoom range
- A minimum focus distance of just 0.2 m*3 from the focal plane ensures incredibly sharp rendering with shooting at close distances
- Adoption of one ED glass element and four aspherical lens elements effectively reduces various types of aberration, including color bleeding and curvature of field at the edges of the frame that is so common at wide angles of view
- Equipped with an optical vibration reduction (VR) mechanism that provides camera shake compensation equivalent to a 4.5-stop increase in shutter speed
- Quiet and smooth aperture control optimized for movie recording minimizes flicker
- An electromagnetic aperture mechanism that enables stable exposure control, even with high-speed continuous shooting
Меры предосторожности при использовании
- Не поднимайте и не держите объектив или камеру только за бленду объектива.
- Следите за чистотой контактов процессора.
- Из-за конструкции системы подавления вибраций объектив может дребезжать при встряхивании. Это не указывает на неисправность.
- Заменяйте переднюю и заднюю крышки объектива, когда объектив не используется.
- Чтобы защитить внутреннюю часть объектива, храните его вдали от прямых солнечных лучей.
- Не оставляйте объектив во влажных местах или в местах, где он может подвергаться воздействию влаги. Ржавление внутреннего механизма может нанести непоправимый ущерб.
- Не оставляйте объектив рядом с открытым огнем или в других местах с очень высокой температурой. Сильный нагрев может повредить или деформировать внешние детали из армированного пластика.
- Быстрые изменения температуры могут привести к повреждению конденсата внутри и снаружи объектива. Перед переносом объектива из теплого помещения в холодное или наоборот поместите его в пакет или пластиковый футляр, чтобы замедлить изменение температуры.
- Мы рекомендуем поместить объектив в футляр (приобретается отдельно), чтобы защитить его от царапин во время транспортировки.
NIKKOR Z DX 16-50mm f/3.5-6.3 VR
- Сверхкомпактный широкоугольныйз ум-объектив. Быстро фокусирующийся объектив с диапазоном фокусного расстояния 16–50 мм (эквивалентно 24–75 мм в формате FX/35 мм).
- Минимальное расстояние фокусировки 0,2 м. Позволяет четко фокусироваться на деталях вблизи.
- Подавление вибраций внутри объектива. Снимайте с выдержкой до 4,5 ступени длиннее. Теперь вы можете делать более четкие изображения даже в условиях слабой освещенности и во время видеосъемки на ходу.
- Бесшумное фокусировочное кольцо. Для ключевых функций, включая ручную фокусировку, управление диафрагмой и коррекцию экспозиции.
- Компактный. Объектив весит всего 135 г и в сложенном состоянии почти не выступает из корпуса фотокамеры.
Технические характеристики NIKKOR Z DX 16-50mm f/3.5-6.3 VR
| Тип | Байонет Z от Nikon |
|---|---|
| Формат | DX |
| Фокусное расстояние | 16–50 мм |
| Максимальная диафрагма | f/3,5–6,3 |
| Минимальная диафрагма | f/22–40 |
| Конструкция объектива | 9 элементов в 7 группах (включая 1 элемент из стекла со сверхнизкой дисперсией (ED) и 4 асферических элемента) |
| Угол зрения | От 83° до 31° 30′ (область изображения DX) |
| Шкала фокусного расстояния | Градуированная в миллиметрах (16, 24, 35, 50) |
| Система фокусировки | Внутренняя фокусировка |
| Минимальное расстояние фокусировки | Положение зума 16 мм: 0,25 м, положение зума 24 мм: 0,2 м, положение зума 35 мм: 0,23 м, положение зума 50 мм: 0,3 м (измеряется от фокальной плоскости) |
| Максимальный коэффициент воспроизведения | Прибл. 0,2-кратный |
| Подавление вибраций | Да. Смещение линз с использованием линейных двигателей (VCM) |
| Число лепестков диафрагмы | 7 (скругленное отверстие диафрагмы) |
| Установочный размер фильтра | 46 мм (P = 0,75 мм) |
| Диаметр х длина (расстояние от байонета объектива) | Прибл. 70 мм (макс. диаметр) x 32 мм (расстояние от крепежного фланца объектива фотокамеры при втянутом объективе) |
| Вес | Прибл. 135 г |
| Автофокусировка | Да |
| Внутренняя фокусировка | Да |
| Фокусировка | Автоматическая, ручная |
| Принадлежности в комплекте поставки | Передняя защитная крышка объектива LC-46B диаметром 46 мм (защелкивающаяся), задняя защитная крышка объектива LF-N1 |

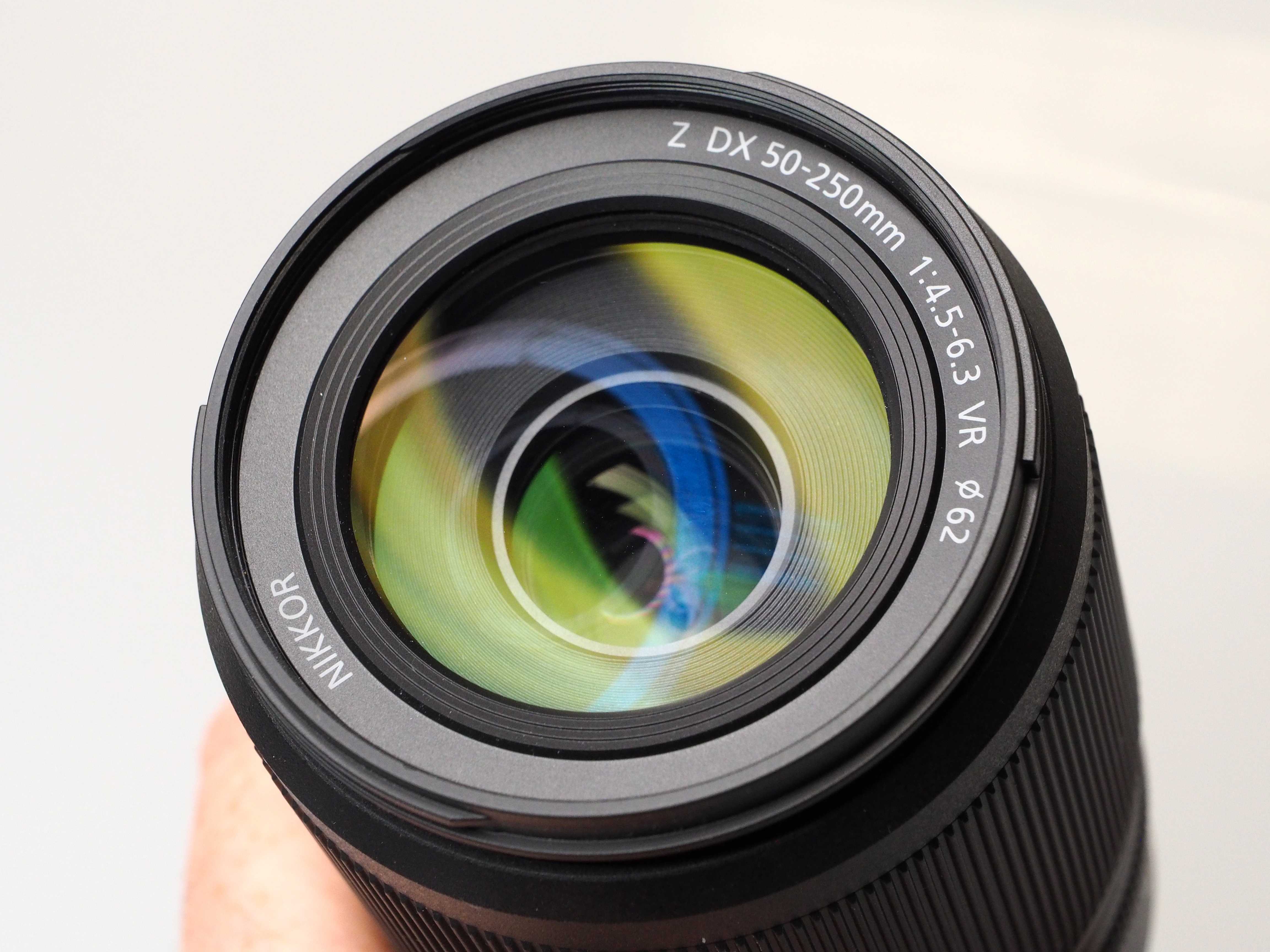

NIKKOR Z DX 50-250mm f/4.5-6.3 VR primary features
- Support for a broad zoom range covering the 50-250 mm*6 focal lengths
- This telephoto lens not only brings distance subjects closer, but minimum focus distances of 0.5 m at the wide-angle position and 1 m at the telephoto position also allow users to capture subjects from very short distances
- Regardless of the focal length, superior resolution can be achieved at any shooting distance, all the way from maximum aperture
- Adoption of one ED glass element provides good compensation for axial chromatic aberration and effectively reduces color bleeding
- Equipped with an optical vibration reduction (VR) mechanism that supports the maximum blur-reduction effect in the history of NIKKOR lenses for interchangeable-lens cameras with an effect equivalent to a 5.0-stop increase in shutter speed that effectively compensates camera shake, even with telephoto shooting
- Quiet and smooth aperture control optimized for movie recording minimizes flicker
- An electromagnetic aperture mechanism that enables stable exposure control, even with high-speed continuous shooting
- Adoption of a retractable mechanism helps achieve compact portability
Related Links
The information is current as of the date of publication. It is subject to change without notice.
- Share
Introduction
|
B&H Photo — Video — Pro Audio I buy only from . I can’t vouch for below. |
This 16-50mm lens is absolutely brilliant. It’s tiny, weightless, collapses for carrying, , has great image stabilization (VR), and is optically flawless.
It’s so good you ought to get a Z50 just so you can use it!
Just turn the focus ring at any time for instant manual-focus override.
I got my 16-50mm at B&H, where it also comes in silver. (Actually I got the kit with both the 16-50mm and 50-250mm lenses). I’d also get it at Adorama, at Amazon, at Crutchfield or at eBay if you know How to Win at eBay. It also comes as part of a kit at B&H, at Adorama, at Amazon and at Crutchfield.
New
Nikon’s first normal zoom for DX Z cameras, which when introduced, is only the Z50.
As of July 2011, also comes in silver.
Good
Ultrasharp.
Focuses super-close and is still ultrasharp.
Fast focus.
No distortion as shot on Z50.
Tiny.
Weightless.
Collapses for carrying.
Great image stabilization (VR),
Reasonable price, especially as part of a kit with the Z50.
Bad
Offshored toThailand; not made domestically in Japan.
Plastic mount, but that’s why it weighs so little. This lens is supposed to be plastic.
Missing
No AF/MF switch (.)
No VR switch (set that in-camera at MENU > PHOTO SHOOTING MENU (camera icon) > Optical VR.
No hood or case included, but they’re not needed, either.
Nikon 16-50mm. bigger.
Тестирование Nikon Z fc
Начнём с теста ISO. Здесь по традиции приведу результаты синтетического тестирования матрицы в программе RawDigger и заодно сравним показатели с Z50. Итак, смотрим:

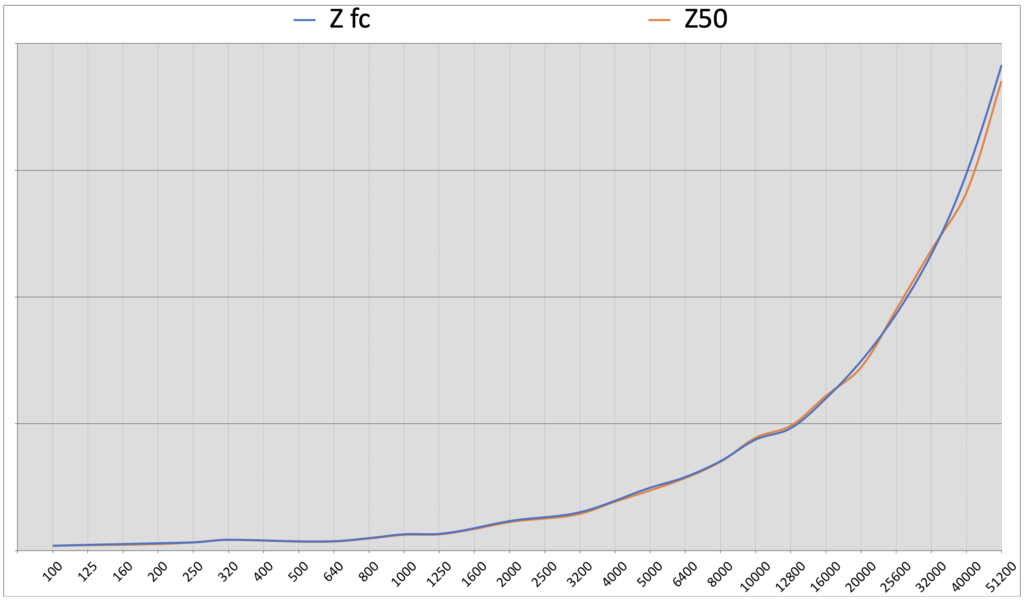

График результатов синтетического теста матриц Z fc и Z50 полностью подтверждает, что здесь они одинаковые. Таким образом, мы можем подтвердить, что обе камеры построены на одинаковой платформе. Но как мы уже выяснили выше, некоторые преимущества у Z fc всё же есть.
| 100 | |
| 200 | |
| 400 | |
| 800 | |
| 1600 | |
| 3200 | |
| 6400 | |
| 12800 |
Первый заметный шум появляется на ISO800. Вплоть до ISO3200 шум монохромный, зерно мелкое и не влияет на детализацию. Даже ISO6400 можно считать рабочим. Работу на более высоких значениях лучше избегать и использовать их только в экстремальных условиях съёмки.
| 25600 | |
| 51200 | |
| 102400 | |
| 204800 |
Следует отметить один момент – здесь доступны только два расширенных значения ISO 102400 и 204800, тогда как на Z50 можно установить 64507 и 81274.
— Исходники теста ISO
Динамический диапазон Nikon Z fc

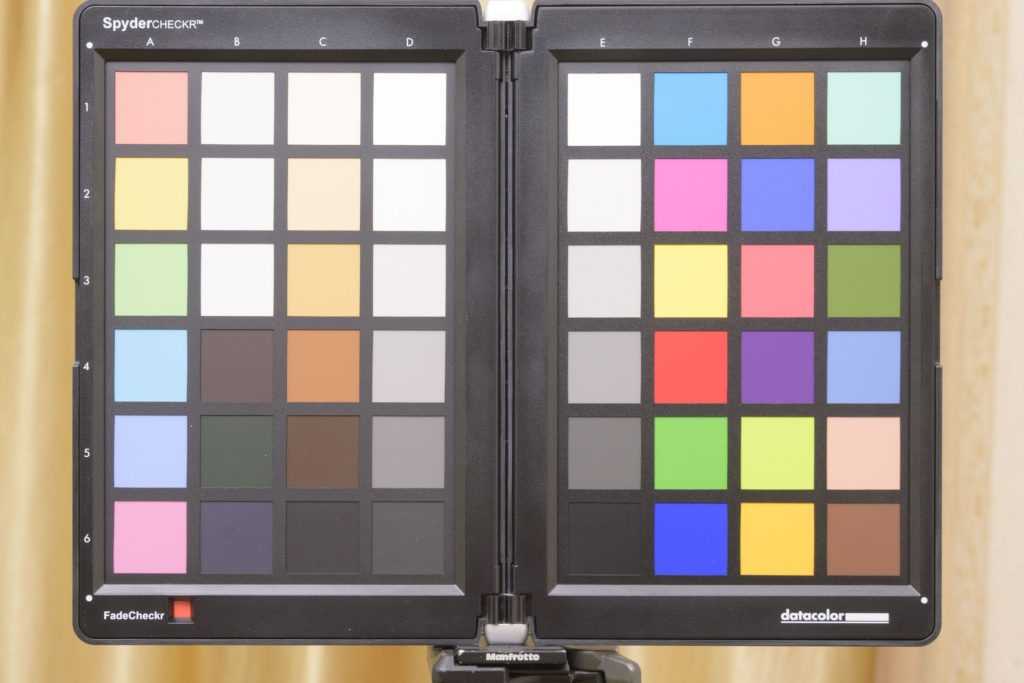

Поскольку платформа у Z50 и Z fc одинаковая, ожидать каких-либо отличий от результатов теста динамического диапазона не стоит. Но всё же давайте посмотрим на что способна Z fc.

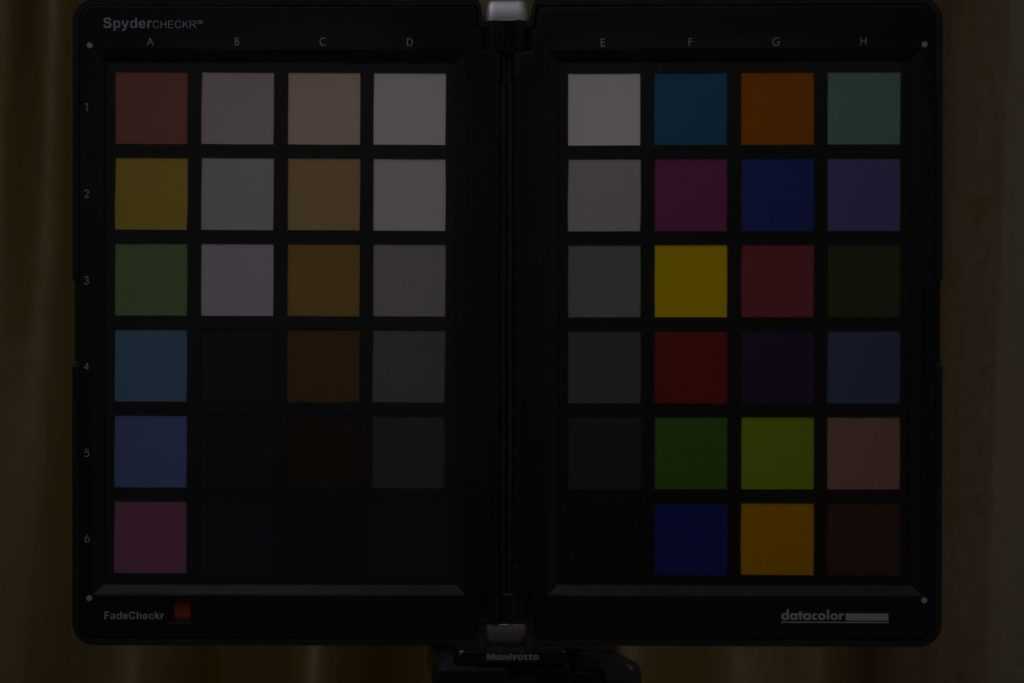

-1EV
-2EV
-3EV
-4EV
Вытягивание трёх ступеней даёт небольшой цветной шум в тёмных участках кадра. Четыре ступени – шумы начинают проявляться уже и в светлых участках, проявляются серьёзные шумы. В целом запас в тенях около 3,5-4 ступеней, что довольно неплохо для кроп-камеры.

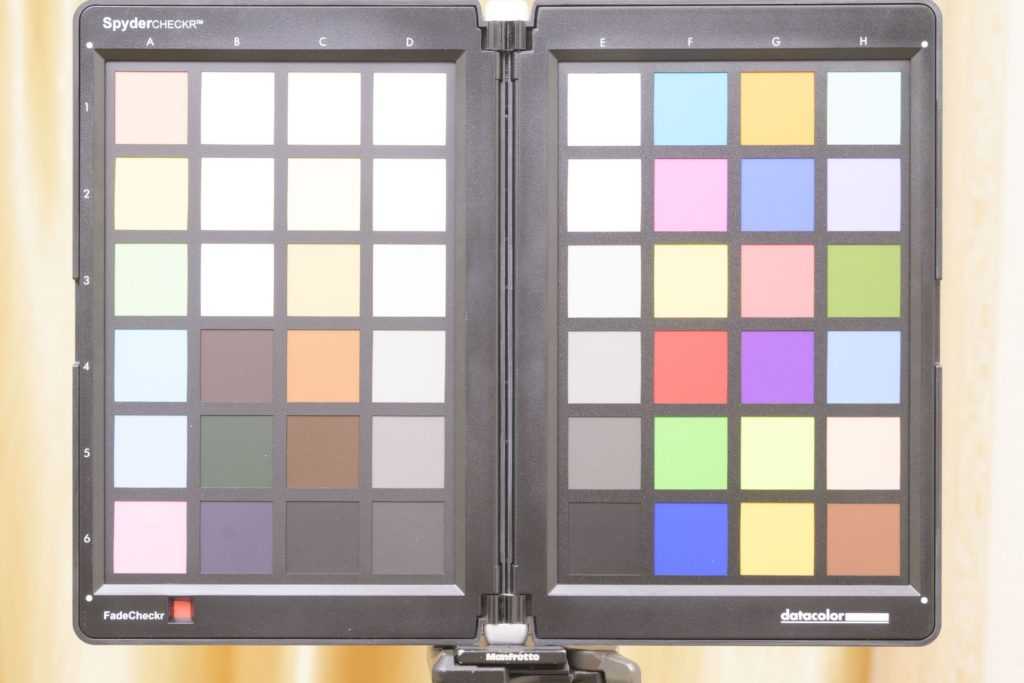

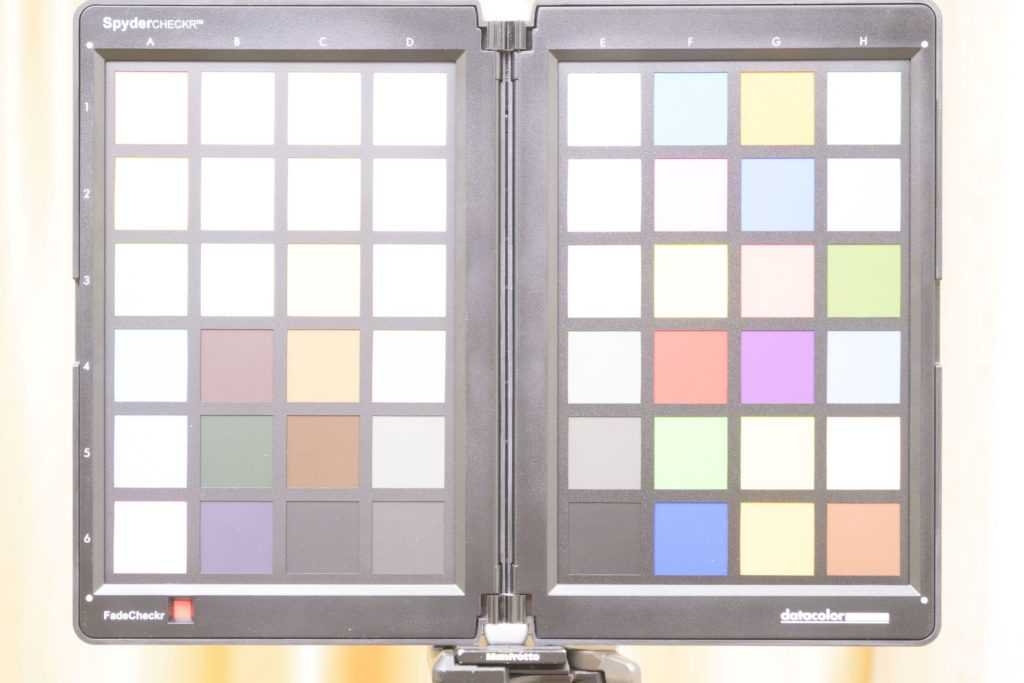

+1EV
+2EV
+3EV
С пересветом в одну ступень камера справляется на отлично. Два ступени уже дают потерю в полутонах. При вытягивании трёх ступеней есть заметная потеря в цветах, новые детали не проявляются. Таким образом, рабочий запас в светах где-то полторы ступени, что также является неплохим показателем.
— Исходники теста динамического диапазона
Nikon Z fc для видео
Для съёмки видео Z fc имеет отдельный режим – так устроены все камеры Z. Это удобно, потому как для каждого режимы мы можем выставить собственные настройки баланса белого, Picture Control, D-lighting и т. д. Кнопка записи работает только если рычаг фото/видео переведён в положение видео. К слову, в режиме фото кнопка записи является функциональной и на неё можно запрограммировать на определённую функцию.
Nikon Z fc обладает стандартными возможностями съёмки видео для современной беззеркалки. Это 4K с частотой 30/25/24 кадра в секунду. Запись 4K происходит со всей площади сенсора. Битрейт в примере ниже составляет 124,1 Мбит/с, что очень неплохо.
Автофокус работает без каких-либо проблем. В режиме видео теперь стала доступна детекция лиц и глаз человека, а также морд животных, включая новую широкую зону L.
Помимо прочего, в настройках можно установить скорость работы автофокуса, фокуспикинг и отображение засветки. К слову, фокуспикинг работает не только в видео, но и в фото в режиме ручного фокуса MF.
Unboxing
The box is completely unsealed. Just like packages of ice cream that kids open, lick and put back in store freezer sections or mouthwash that’s been gargled and put it back on the store shelf, there is no way to know if anyone else has been fiddling with your lens, swapping parts and accessories, or even if it’s a dropped, returned, damaged or used lens.
I got my 16-50mm at B&H, where it also comes in silver. (Actually I got the kit with both the 16-50mm and 50-250mm lenses). I’d also get it at Adorama, at Amazon, at Crutchfield or at eBay if you know How to Win at eBay. It also comes as part of a kit at B&H, at Adorama, at Amazon and at Crutchfield.
Especially with a plastic lens like this, it’s critical to buy only from an , since they ship from automated warehouses where no shifty salesmen or other customers ever getting to touch your new lens before it ships. While new $5 CDs, DVDs, Blu-Rays and bottles of milk and drinking water are sealed and quite obvious if anyone’s opened them, paradoxically Nikon doesn’t bother sealing anything, so your only insurance is to buy only from a .
