Specifications

Name

Tokina calls this the Tokina AT-X SD 300mm f/2.8 AF.

AT-X: Tokina’s name for it’s best lenses.

SD: Magic extra-low dispersion () glass for reduced secondary chromatic aberration.

AFAutofocus.

9 elements in 7 groups.

No aspherical elements.

2 extra-low dispersion SD elements.

Multicoated.

Diaphragm

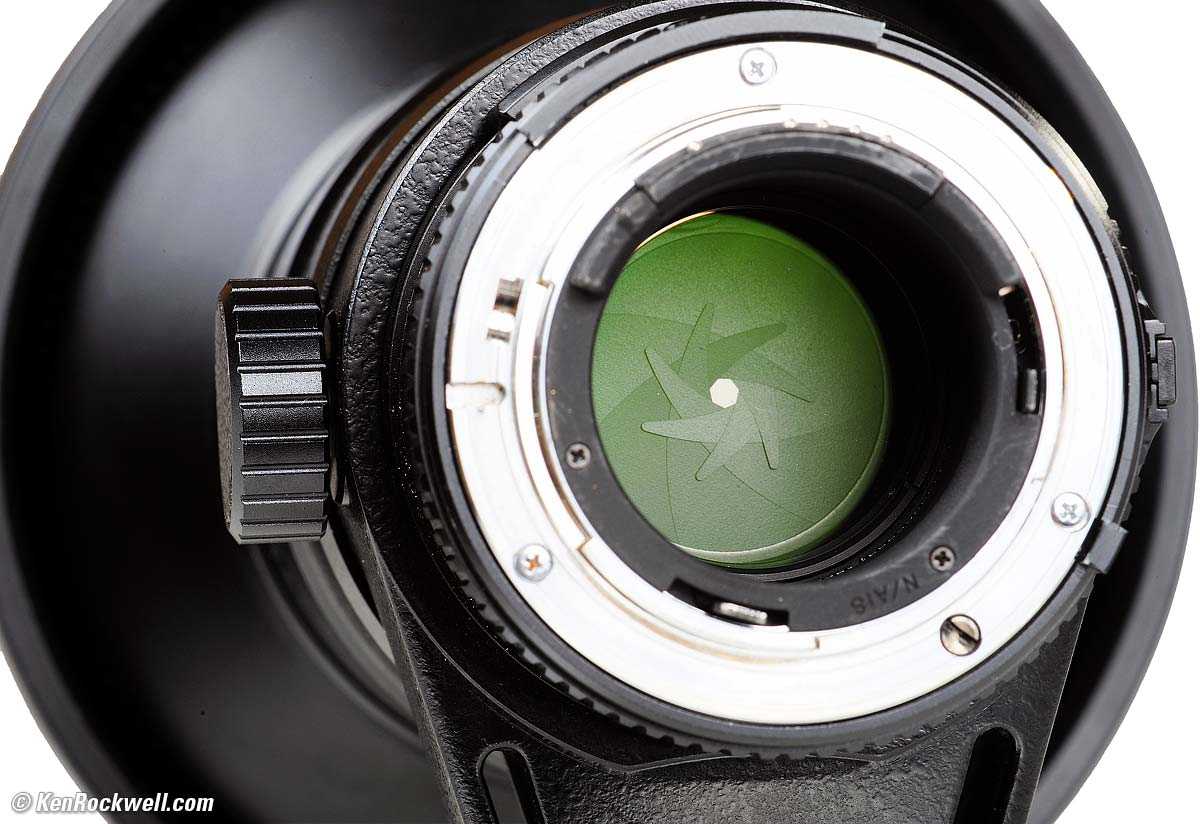

Rear, Tokina 300mm f/2.8 AF AT-X. bigger.

7 straight blades, at least on the Nikon version. Other versions may have different diaphragms.

Stops down to f/32.

Focal Length

300 mm.

When used on an APS-C camera, it sees the same angle of view as a 450 mm lens sees when used on a full-frame or 35mm camera.

Filters

Metal 112 mm front filter thread.

35.5mm filters screw into a rear snap-in holder.

There must always be a 35.5mm rear filter installed for focus to be adjusted properly; it’s part of the optical design.

Hood, Tokina 300mm f/2.8 AF AT-X. bigger.

Solid alloy hood with rubber bumper included.

Caps

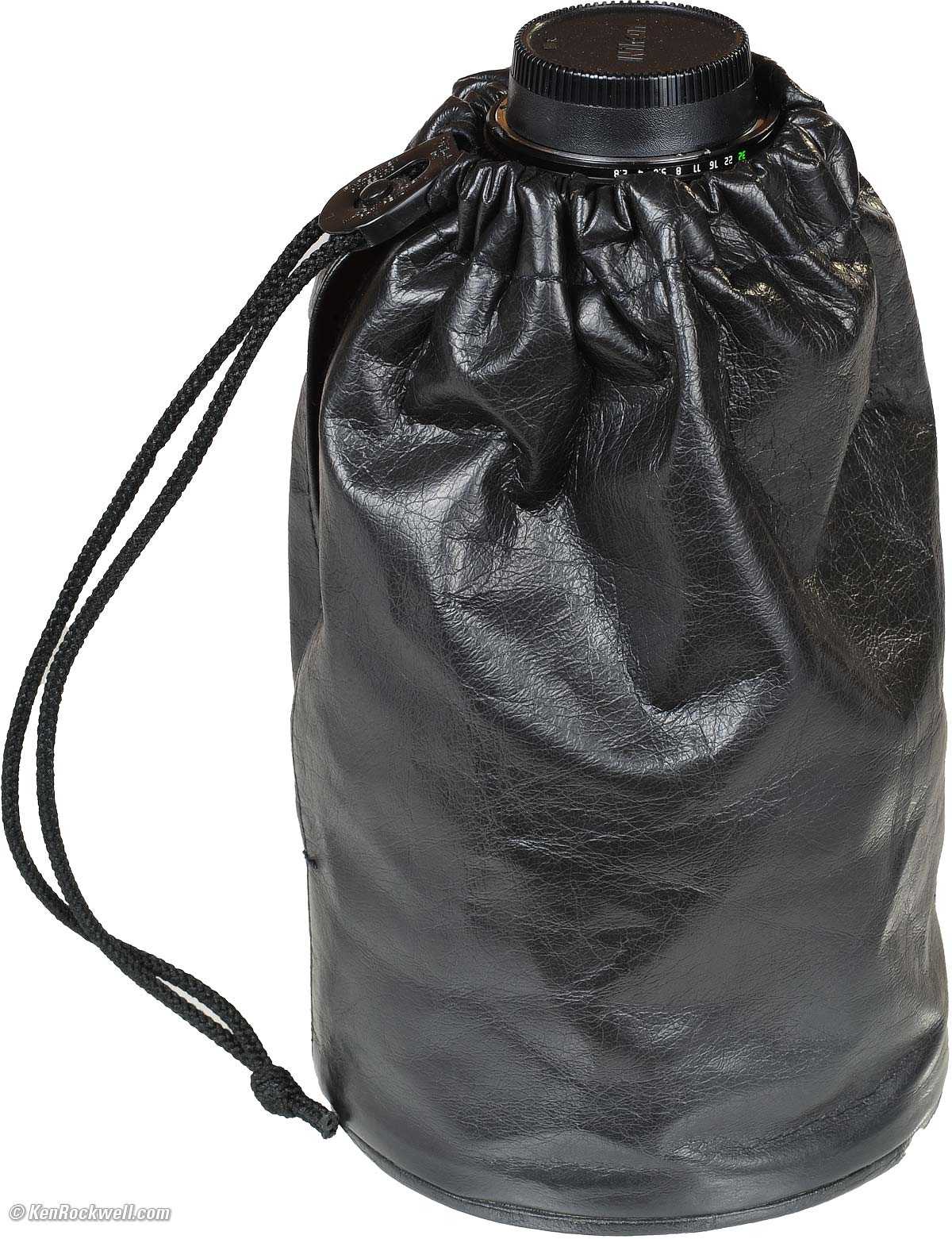

Front lens cover, Tokina 300mm f/2.8 AF AT-X. bigger.

The front cap is actually a full-body vinyl sock with a reinforced flat front.

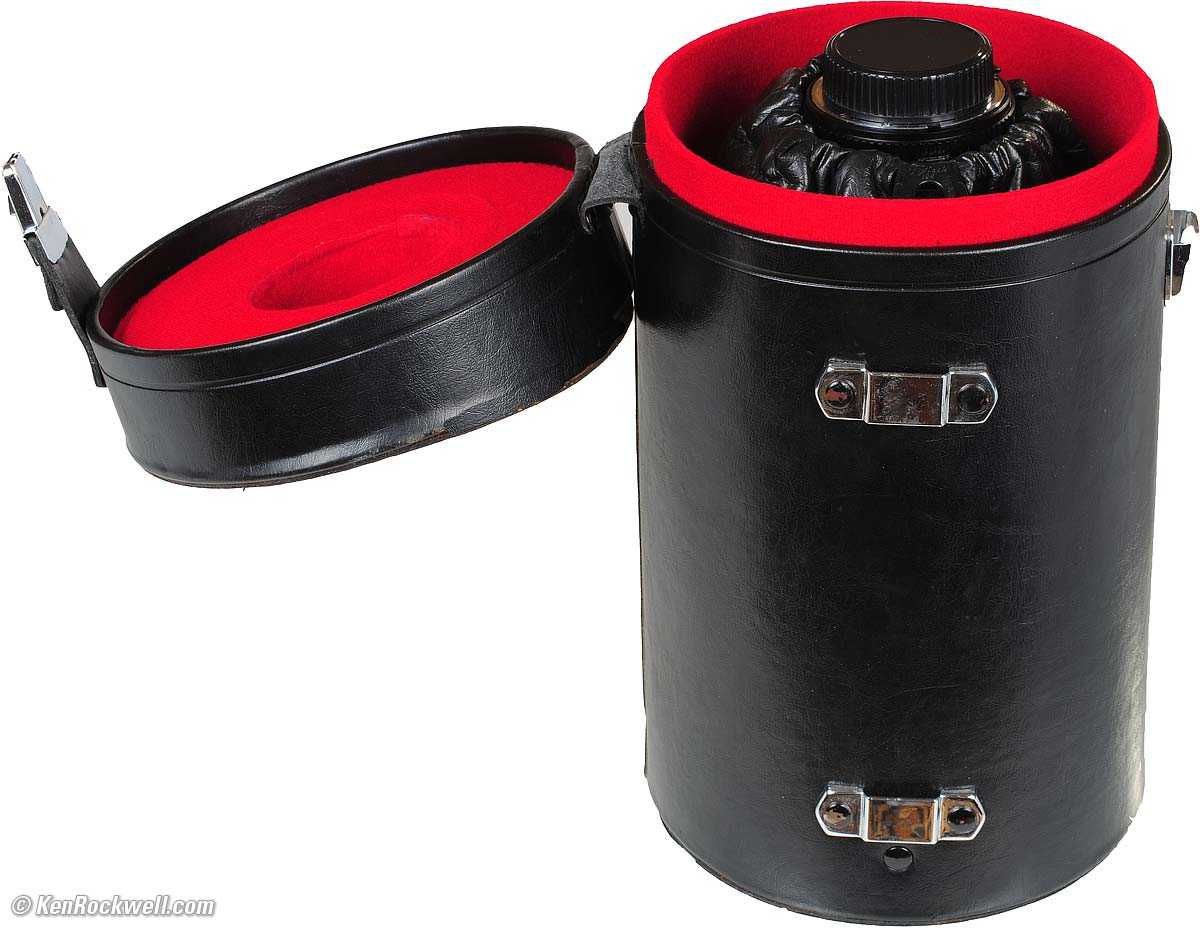

Included case, Tokina 300mm f/2.8 AF AT-X. bigger.

It comes with a hard tubular case lined in fine red velvet.

Size

4.656» maximum diameter (5.329″ including the hood & bumper) × 8.386″ extension from flange (8.740″ extension with included filter, 10.748″ with included hood extended).

118.2 mm maximum diameter (135.36mm for the hood bumper) × 213 mm extension from flange (222mm extension with included filter, 273mm with included hood extended).

Exposed front glass diameter: 101.67 mm (for comparison, the Nikon manual-focus 300mm f/2.8 ED-IF AI-s has 106.42mm worth of glass at the front)

The included filter is 9.00mm thick.

Weights (actual measured)

77¼ oz. (4 lb. 13¼ oz. or 2,190 g), lens only.

88 oz (5 lbs. 8 oz. or 2,490g), lens and hood.

91 oz. (5 lbs. 11 oz. or 2,580g), lens, hood and filter.

Tokina’s included 112mm filter: 3.360 oz. (95.35g).

Hood only: 10.725 oz. (304.0g).

For comparison, the Nikon manual-focus 300mm f/2.8 ED-IF AI-s weighs 86 oz. (5 lbs. 6 oz or 2,440g).

Included

Lens, 112mm front filter, 35.5mm filter in the snap-in holder in the rear of the lens, drawstring sock cap, rear cap and tubular case.

Help Me Help You

I support my growing family through this website, as crazy as it might seem.

The biggest help is when you use any of when you get anything. It costs you nothing, and is this site’s, and thus my family’s, biggest source of support. These places always have the best prices and service, which is why I’ve used them since before this website existed. I recommend them all personally.

If you find this
page as helpful as a book you might have had to buy or a workshop you may
have had to take, feel free to help me continue helping everyone.

If you’ve gotten your gear through one of my or helped otherwise, you’re family. It’s great people like you who allow me to keep adding to this site full-time. Thanks!

If you haven’t helped yet, please do, and consider helping me with a gift of $5.00.

As this page is copyrighted and formally registered, it is unlawful to make copies, especially in the form of printouts for personal use. If you wish to make a printout for personal use, you are granted one-time permission only if you PayPal me $5.00 per printout or part thereof. Thank you!

Thanks for reading!

Mr. & Mrs. Ken Rockwell, Ryan and Katie.

Home
Donate
New
Search
Gallery
Reviews
How-To
Books
Links
Workshops
About
Contact

Recommendations

This is a very practical way to get serious pro portrait firepower at a fire-sale price.

Everyone needs a 300/2.8. Even if you don’t plan to use it, show up with it on your camera and you instantly look like the top pro you are. When you arrive at an event, you may be able to sweet talk your way to the VIP area for free.

There’s no cheaper way to get awesome bokeh and completely soft, lost backgrounds.

For nature and landscape, this is a lot of glass for very little money. It’s fast and sharp.

The only gotcha could be that you never know if it will be fully compatible with your particular model of camera until you try it, if I didn’t already .

If you get one without the included Tokina 112mm front protective filter, I’d use a 112mm B+W MRC 010 UV filter to protect this lens. I don’t know that I’d pay extra for multicoating; the lens isn’t that well coated in the first place and 112mm filters get very expensive very quickly.

Be sure you have a 35.5mm filter in the rear filter holder with your lens. You may be able to use this filter or this one.

These Tokina lenses are always easy to find where I got mine at this link directly to them at eBay; see How to Win at eBay.

This all-content, junk-free website’s biggest source of support is when you use those or any of when you get anything, regardless of the country in which you live. xx does not seal its boxes in any way, so never buy at retail or any other source not on since you’ll have no way of knowing if you’re missing accessories, getting a defective, damaged, returned, store demo or used camera. I use the stores I do because they ship from secure remote warehouses where no one gets to touch your new camera before you do. Buy only from the for the best prices, service, return policies and selection.

Thanks for helping me help you!

Ken, Mrs. Rockwell, Ryan and Katie.

Introduction

B&H Photo — Video — Pro Audio

I buy only from . I can’t vouch for below.

The Tokina 300mm f/2.8 AT-X is an ultraspeed ultratelephoto lens from the 1990s.

Today it’s inexpensive and easy to find, built like a tank, and has great optics. It’s an inexpensive alternative to Nikon’s or Canon’s 300mm f/2.8 lenses. It gives far better bokeh and much softer backgrounds for professional portraiture at a fraction of the price of any new 70-200/2.8.

It comes in mounts for Nikon, , Sony A, Minolta MAXXUM and possibly other mounts. I have the Nikon mount.

For Sony E, I’d suggest finding one in Minolta MAXXUM (Sony A) mount and using the Sony LA-EA4 adapter which ought to give fast autofocus and full automation. Since Minolta mounts are hard to find (this was an exotic, expensive pro lens in its day, and pros never shot Minolta), you’ll have an easier time finding one in Canon mount and then using a Canon EOS EF to Sony E mount adapter. Good luck.

Versions

I have the AT-X AF version.

There is an earlier manual-focus only version, which presumably has the same optics.

There is a newer AT-X AF II version.

The newest version is the AT-X PRO version, which I believe also has the same optics, but adds a push-pull clutch to the focus ring to speed-up auto/focus switching. This version speeds that up, but once in manual, I suspect the feel is better in the earlier versions.

Good

● Very sharp.

● Reasonably close focussing: 7.9’/2.4m.

● Fast manual focus; flicks with a fingertip.

● Solid all-metal construction.

● Simple, sturdy technology suggests long service life — there’s nothing to break!

Bad

● As with all third-party lenses, there’s always the potential for incompatibility with some models of camera or lens adapters.

● No instant manual focus override; have to move a switch.

Compatibility

Nikon

This is a traditional screw-focus AF lens, with electronic contacts as well as a traditional AI-s aperture ring for use on old 35mm Nikons.

I tried it, and it works great on my Nikon D810, Nikon D3, F100, FA (uses the low-speed program optimized for landscapes)), F4, N5005, N55 (gives the high-speed program optimum for sports), N75 (gives the high-speed program optimum for sports), D70 (gives the high-speed program optimum for sports), D300, D200, N2020, N70 (gives the high-speed program optimum for sports) and Pronea S (gives the high-speed program optimum for sports).

Auto exposure control works, but focus is manual only, on my F6 and D40.

It works fantastically well on manual-focus cameras like the F2AS, F3, FE and FA as well, since it has real manual-focus and aperture rings that work exactly as they should.

This screw-focus lens will not autofocus with the cheapest D40, D40x, D60, D3000, D3100, D3200, D3300, D5000, D5100, D5200, D5300, D5500 or D5600, but if you focus manually, everything else works great. These cameras have in-finder focus confirmation dots to help you.

I haven’t tried it, but I suspect it should be fine on the D7500 but not have any metering or AF on the D3400.

It works with the Nikon TC14 teleconverter to make it a manual-focus 420mm f/4.

See Nikon Lens Compatibility for details on your camera. Read down the «AF, AF-D (screw)» column for this lens.

Be forewarned that at a third-party lens that there is always the potential for incompatibility.

Canon

I haven’t tried it, but Canon’s EF lenses work on all their EOS cameras, so I’d hope that the Canon version ought to work on all Canon EF EOS cameras.

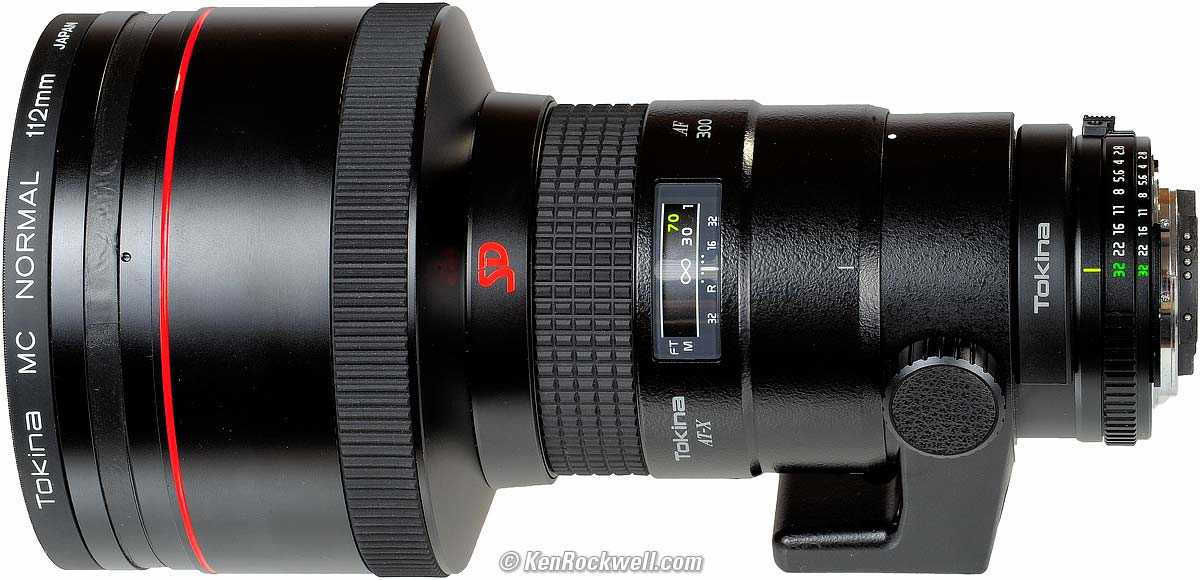

Tokina 300mm f/2.8 AF AT-X. bigger.
