Nikon n8008 - down the road

In Conclusion

I am not a Nikon fan to the exclusion of all else. I have used Nikon mainly because I started using the make with Nikkormats and progressed through other models up to the Fujifilm S2Pro digital, based on an early Nikon digital body. Not having to change systems just made sense. I have to say, however, that their products are solid and dependable, and the lenses first class.

Since returning to film, a large number of interesting cameras that I have always admired have passed through my hands when used prices dropped but I seem to have spiralled in to the viewfinder, rangefinder, TLR, SLR and mirrorless models which I use nowadays. They all demonstrate some aspect of developments in camera technology and the Nikon F801 is probably one of the last steps before the digital powerhouses available now.

(Photos of the camera and digitised copies of negatives are produced with a Sony A3000 with 55mm Ai’d Micro Nikkor and adapters processed in Affinity Photo.)

Contribute to 35mmc for an Ad-free Experience

There are two ways to experience 35mmc without the adverts:

Paid Subscription — £2.99 per month and you’ll never see an advert again! (Free 3-day trial).Subscribe here.

Content contributor — become a part of the world’s biggest film and alternative photography community blog. All our Contributors have an ad-free experience for life.Sign up here.

Specifications[]

BODY

Lens release: button on the left side of the lens mount
Focus modes: Autofocus and Manual with electronic rangefinder
Autofocus modes: single servo AF with focus priority and continous servo AF with release priority
AF detection system: TTL phase detection system — Nikon Advanced AM200 module
AF detection range: EV minus 1 to EV 19 at ISO 100.
AF lock: possible in single servo AF mode once a stationary subject is in focus as long as the shutter button is depressed; in continuous servo AF
Electronic rangefinder: available in manual focus mode with an AF Nikkor and other AI-type Nikkor lenses with a maximum aperture of f/5.6 or faster
Depth of Field preview button: on the right side of the lens mount
Shutter: Electromagnetically controlled vertical-travel focal-plane metal shutter,
Shutter release: by motor trigger, automatic motor drive winding and cocking,
Frame counter: additive type, counts back while film is rewinding, auto-resets
LCD panel information: shutter speed, aperture, exposure mode, metering system, film speed, DX mark, electronic analogue display, exposure compensation mark, frame counter/self timer/multiple exposure, exposure compensation value, film advance mode, film loading, film rewind, self timer, panel on the right of the top plate
Command input control dial: a thumb wheel, on the right of the top plate
Viewfinder/LCD panel illumination: by pressing button on the back side of the top plate
Viewfinder: fixed eyelevel SLR pentaprism, high-eyepoint type, w/ Eyepiece hood
Focusing Screen: Fixed Nikon advanced B-type Bright-View screen, interchangeable with E-type screen
Viewfinder information: focus indications, exposure mode, shutter speed/ISO, aperture/exposure compensation, electronic analogue display, exposure compensation mark and flash-ready are all shown in LCD readout, also shows flash recommended/ready light LEDs
Exposure meter: Matrix metering, centre-weighted metering (75/25) and spot metering
Film speed range: 6-6400 ASA, setting: DX code or by manual override, setting by the LCD display and the mode knob on the multi-settings dial on the left of the top plate
Metering range: EV 0 to 21
Exposure modes: fully Programmed auto-multi, shutter priority auto, aperture priority auto and manual, setting by the LCD display and the mode knob on the multi-settings dial on the left of the top plate
Programmed auto exposure control: Both shutter speed and aperture are set automatically, 1 EV increments of aperture is possible
Exposure compensation: within +/- 5 EV range in 1/3 EV steps, button on the front of the LCD display
Auto exposure lock: by sliding the AE-L lever on the back side of the top plate, while the meter is on
Multiple exposure button: the knob on the multi-settings dial on the left of the top plate coupled with rewind release button, up to 9 exposures can be set
Film loading: film automatically advances to first frame when shutter release button is depressed once
Film advance: in single-frame shooting mode, film automatically advances one frame when shutter is released; in continuous high or continuous low shooting modes, shots are taken as long as shutter release button is depressed; high speed 3.3 fps; low 2.0 fps.
Film rewind: by simultaneously pressing buttons with red rewind markings in front of the LCD display and the knob on the multi-settings dial on the left of the top plate, rewind stops auotomatically when film is rewound
Flash synch. X, 1/60 to 1/250
Self-timer: electronically controlled; timer duration selectable from 2 to 30 seconds in one second increments, blinking red LED on the front of the hand grip, indicates self-timer operation, cancellable, button on the left of the top plate
Remote control terminal: on the left-front side of the camera, w/ a lid
Back cover: hinged, interchangeable with Nikon Multi-Control Back MF-21 or World Time Data Back MF-20, w/ film cartridge confirmation window
Others: Hot-shoe; Tripod socket 1/4 inch; Strap lugs
Body: metal; Weight 695g, wo/lens
Battery: 4 AA alkaline batteries, battery chamber opens by a screw on the right bottom side of the camera and the battery holder slides out

LENS

This lens data belongs to the lens in the photos, there are many Nikkor lenses available for F-801

AF Nikkor 24-50mm f/3.3-f/4.5, filter thread 62mm
Mount: Nikon F bayonet
Zooming: manual, the ring and scale on the lens
Aperture: f/3.3-f/22, setting: auto or manual by the ring and scale on the lens, w/ a lock button on it, locks at f/22
Focus range: 0.6-10m + inf, with macro facility

Specifications

BODY

Lens release: button on the left side of the lens mount
Focus modes: Autofocus and Manual with electronic rangefinder
Autofocus modes: single servo AF with focus priority and continous servo AF with release priority
AF detection system: TTL phase detection system — Nikon Advanced AM200 module
AF detection range: EV minus 1 to EV 19 at ISO 100.
AF lock: possible in single servo AF mode once a stationary subject is in focus as long as the shutter button is depressed; in continuous servo AF
Electronic rangefinder: available in manual focus mode with an AF Nikkor and other AI-type Nikkor lenses with a maximum aperture of f/5.6 or faster
Depth of Field preview button: on the right side of the lens mount
Shutter: Electromagnetically controlled vertical-travel focal-plane metal shutter,
Shutter release: by motor trigger, automatic motor drive winding and cocking,
Frame counter: additive type, counts back while film is rewinding, auto-resets
LCD panel information: shutter speed, aperture, exposure mode, metering system, film speed, DX mark, electronic analogue display, exposure compensation mark, frame counter/self timer/multiple exposure, exposure compensation value, film advance mode, film loading, film rewind, self timer, panel on the right of the top plate
Command input control dial: a thumb wheel, on the right of the top plate
Viewfinder/LCD panel illumination: by pressing button on the back side of the top plate
Viewfinder: fixed eyelevel SLR pentaprism, high-eyepoint type, w/ Eyepiece hood
Focusing Screen: Fixed Nikon advanced B-type Bright-View screen, interchangeable with E-type screen
Viewfinder information: focus indications, exposure mode, shutter speed/ISO, aperture/exposure compensation, electronic analogue display, exposure compensation mark and flash-ready are all shown in LCD readout, also shows flash recommended/ready light LEDs
Exposure meter: Matrix metering, centre-weighted metering (75/25) (spot metering on F-801S/N8008S)
Film speed range: 6-6400 ASA, setting: DX code or by manual override, setting by the LCD display and the mode knob on the multi-settings dial on the left of the top plate
Metering range: EV 0 to 21
Exposure modes: fully Programmed auto-multi, shutter priority auto, aperture priority auto and manual, setting by the LCD display and the mode knob on the multi-settings dial on the left of the top plate
Programmed auto exposure control: Both shutter speed and aperture are set automatically, 1 EV increments of aperture is possible
Exposure compensation: within +/- 5 EV range in 1/3 EV steps, button on the front of the LCD display
Auto exposure lock: by sliding the AE-L lever on the back side of the top plate, while the meter is on
Multiple exposure button: the knob on the multi-settings dial on the left of the top plate coupled with rewind release button, up to 9 exposures can be set
Film loading: film automatically advances to first frame when shutter release button is depressed once
Film advance: in single-frame shooting mode, film automatically advances one frame when shutter is released; in continuous high or continuous low shooting modes, shots are taken as long as shutter release button is depressed; high speed 3.3 fps; low 2.0 fps.
Film rewind: by simultaneously pressing buttons with red rewind markings in front of the LCD display and the knob on the multi-settings dial on the left of the top plate, rewind stops auotomatically when film is rewound
Flash synch. X, 1/60 to 1/250
Self-timer: electronically controlled; timer duration selectable from 2 to 30 seconds in one second increments, blinking red LED on the front of the hand grip, indicates self-timer operation, cancellable, button on the left of the top plate
Remote control terminal: on the left-front side of the camera, w/ a lid
Back cover: hinged, interchangeable with Nikon Multi-Control Back MF-21 or World Time Data Back MF-20, w/ film cartridge confirmation window
Others: Hot-shoe; Tripod socket 1/4 inch; Strap lugs
Body: metal; Weight 695g, wo/lens
Battery: 4 AA alkaline batteries, battery chamber opens by a screw on the right bottom side of the camera and the battery holder slides out

LENS

This lens data belongs to the lens in the photos, there are many Nikkor lenses available for F-801

AF Nikkor 24-50mm f/3.3-f/4.5, filter thread 62mm
Mount: Nikon F bayonet
Zooming: manual, the ring and scale on the lens
Aperture: f/3.3-f/22, setting: auto or manual by the ring and scale on the lens, w/ a lock button on it, locks at f/22
Focus range: 0.6-10m + inf, with macro facility

Характеристики

Несмотря на то, что F-801 обозначен в диапазоне номеров, обычно предназначенных для любительских камер (обозначается не единственной цифрой после F, например, не F3), он был построен по высоким стандартам и включал в себя ряд профессиональных функций:

Кнопка предварительного просмотра глубины резкости позволяет временно остановиться до диафрагмы для проверки глубины резкости.
Функция множественной экспозиции позволяет делать до девяти снимков в одном кадре.
Уникальный автоспуск «на два кадра». Это позволило сделать второй снимок с помощью автоспуска через пару секунд после первого, давая более «расслабленный» и неэкспонированный снимок.
Полностью программируется автоматическая экспозиция, приоритет диафрагмы , приоритет выдержки и полностью ручной контроль экспозиции.
Диапазон выдержки от 30 секунд до 1/8000 секунды в ручном режиме.
Установка светочувствительности из кода DX или вручную (от 6 до 6400 единиц ISO).
1/250 сек. синхронизация вспышки.
Оценочный 2D-матричный и 75% -ный центрально-взвешенный режимы замера экспозиции.
Совместимость с Nikon Multi-Control Back MF-21, обеспечивающая фиксацию фокуса, печать данных и автоматический брекетинг экспозиции.

In use.

The manual can be seen online and runs to over 80 pages so I will not attempt to cover everything here, just the basics.

Film loading is very simple, the film being pulled across the gate and the end lined up with a red index mark. Closing the back and pressing the shutter release brings the first frame swiftly into position. Any loading mistake is signalled immediately on the LCD.

As mentioned, the Nikon F801 finder employs the same optical design as the F3HP finder so spectacle wearers or someone needing to wear goggles or eye protection could still see the whole field. The finder can have one of two alternative screens fitted and the small LCD panel across the base repeats most of the information from the top plate LCD plus a flash ready indicator.

When shooting the Nikon F801, there are the options run from fully auto program to full manual control with various options in between, and with an immediate switch back to fully programmed auto by pressing the mode and drive buttons together for a few seconds. AF lenses are needed for this. All legacy Nikon lenses can be used with varying functional limitations, except for non-AI and some other lenses and accessories. The much later AF lenses with electrical connections designed for digital cameras will not work of course.

Mode, shutter speed, aperture, exposure compensation and focus confirmation are shown in the finder so adjustments can be made with the camera to the eye. The autofocus, mechanically driven rather than with a linear motor in the lens, is quick and positive but is restricted to a central patch. The focus confirmation can be used as an electronic rangefinder for non-AF lenses. Single, continuous and manual focus are options, the drive connection disconnecting in manual.

The shutter speeds go up to 1/8000sec, a high speed for a mechanical. focal plane shutter even today, and down to 30seconds. The self timer can be set between 2 and 30 seconds and a multiple exposure setting allows up to 9 exposures on one frame. Continuous shooting proceeds at a rather sedate, selectable 2 or 3.3 frames per second.

Nikon’s centre weighted metering is available along with spot and matrix metering options, the last analysing five segments of the frame and setting the exposure based on built in data of various types of scene. I have been using Nikon’s centre weighted method since my Nikkormat days but I have been trying matrix metering recently to see how effective it is. Like all exposure meters, matrix still needs watching in more contrasty situations as it seems to try to achieve the best average result and may not be what is actually envisioned. It really is a stepping stone between earlier hand-held meters, basic TTL and the very sophisticated metering we are so used to with digital today, which can assess the whole screen in much finer detail. I use all these methods with one camera or another so it is an interesting comparison.

Handling the Nikon F801 for shooting uses the left hand to press some of the function buttons and control the lens, for zooming or manual focusing, everything else is done with the right hand The AF locks with first pressure on the shutter release but there is a button on the front plate if needed for the same purpose. AE lock is controlled by a sliding button below the command wheel, convenient for right thumb operation, and exposure compensation is controlled by a button next to the on/off switch used in combination with the command dial and the LCD read-outs.

Rewinding is motorised, needing the rewind and multi exposure buttons to be pressed simultaneously which winds the film fully into the cassette.

Walk around

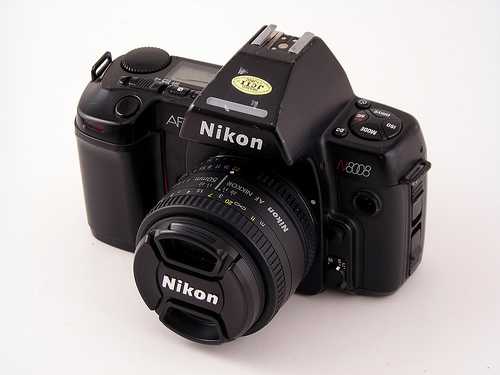

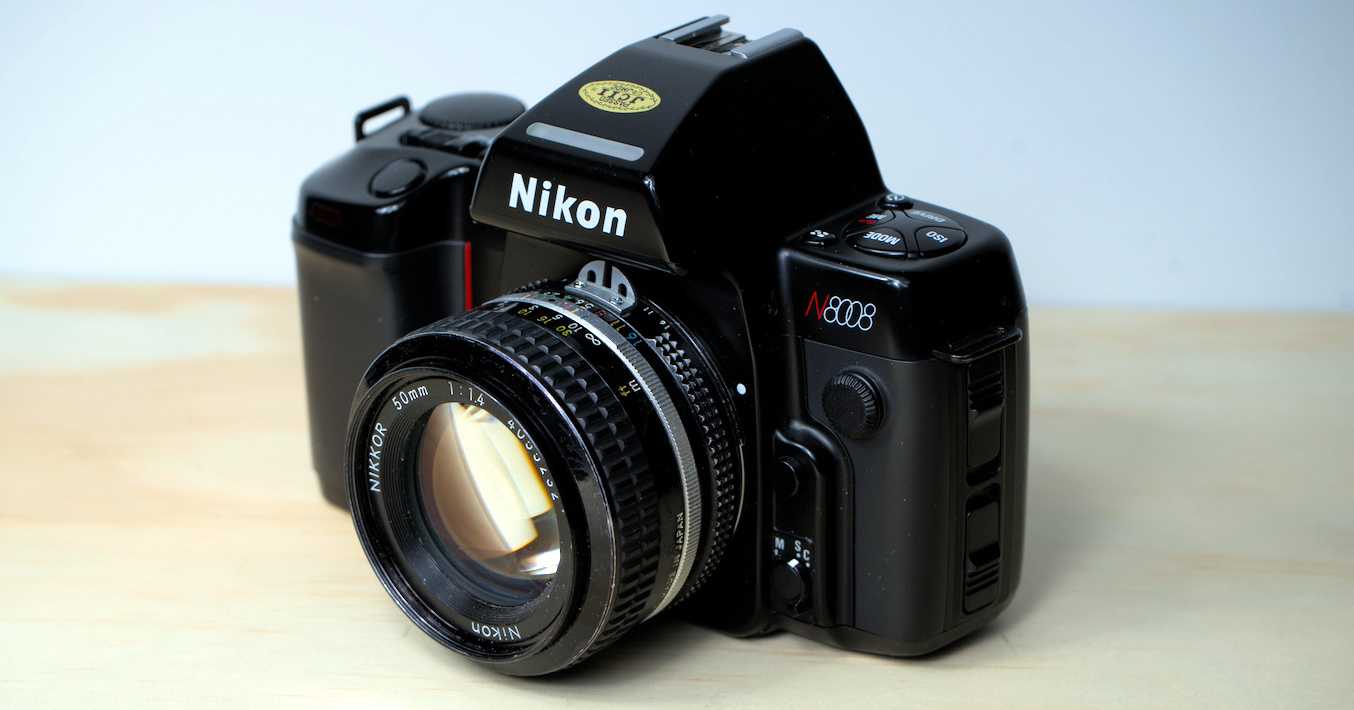

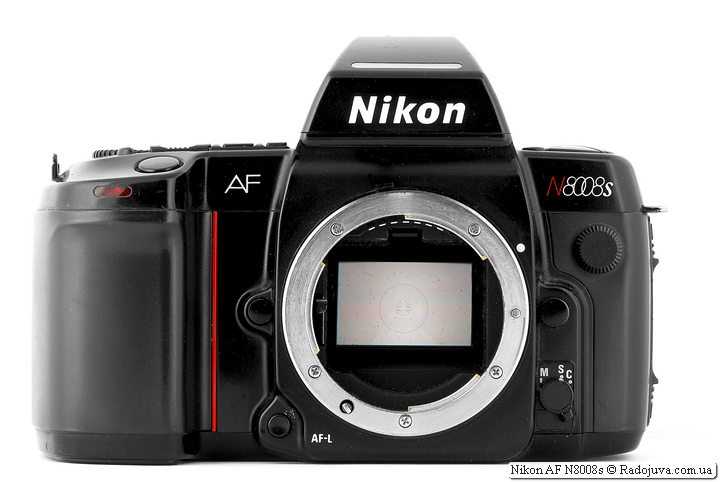

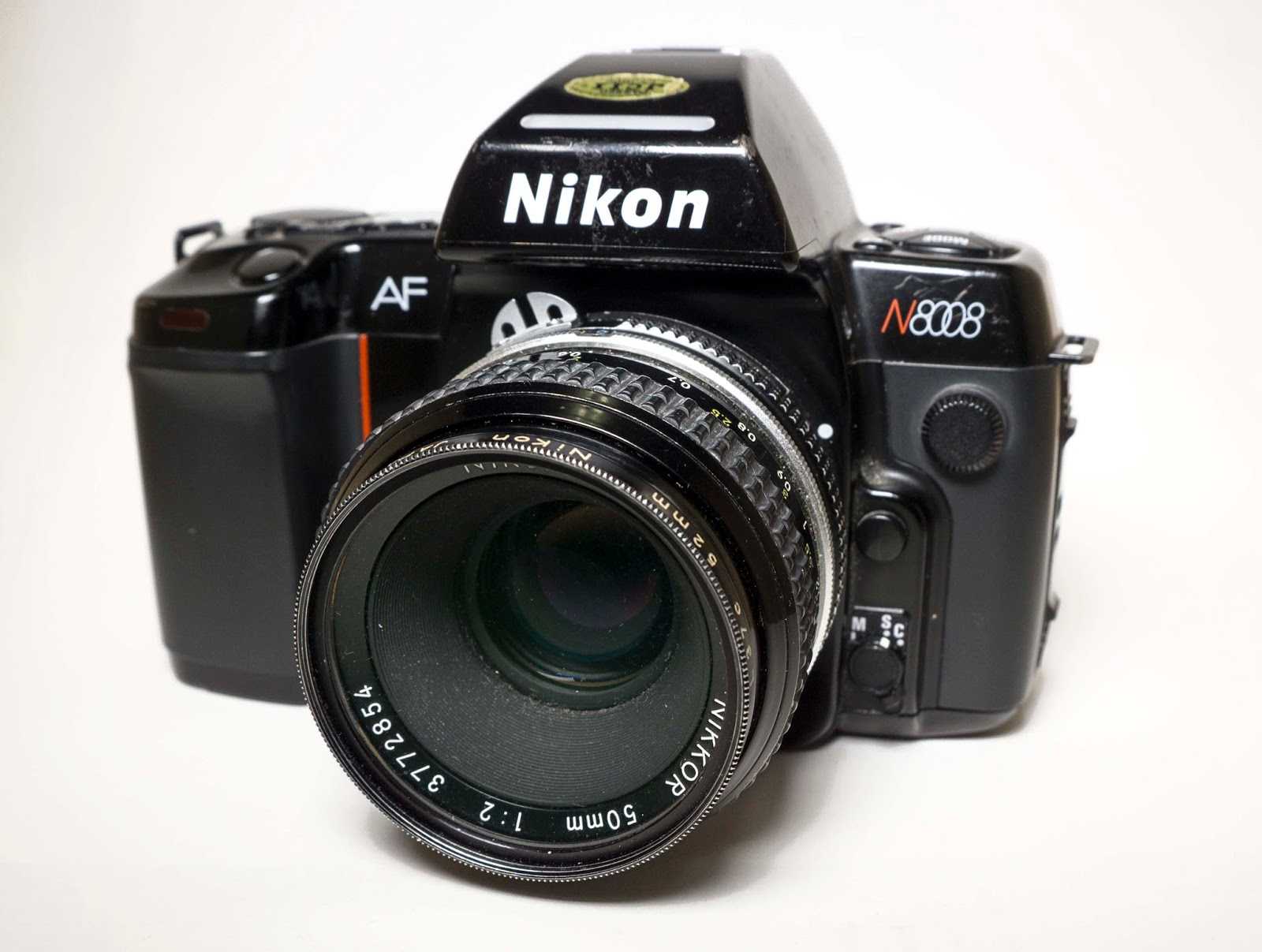

The Nikon F801 (otherwise also know as the N8008) camera is typically Nikon, finished in black with the distinctive red line alongside the handgrip.

In the hand the Nikon F801 feels very much the business with a really solid, comfortable grip and the high eye-point finder from Nikon’s F3HP making it great to use. Nikon’s ergonomics and control approach has remained very consistent over the years, developing rather than innovating, so picking up most of their cameras from the 1970s onward can feel quite familiar.

The big change here though was that the F801 was Nikon’s first camera to move to electronic, push button controls from the traditional wheels, one of the pioneers of the all electronic controls so commonplace now. Only one wheel is provided here which falls conveniently under the right thumb and works in combination with the buttons which select the function whilst the wheel makes any adjustments needed to the function chosen. Altering the film speed, for example to override the preset DX coding on the cassette, requires the ISO button to be held down whilst turning the wheel to bring up the required speed setting. The process applies to all the choice of functions and once familiar is very quick and effective and was used later on the F601 with one or two small changes.

The effect of these adjustments is displayed on a small LCD mounted on the top plate which provides a very comprehensive picture. The display changes as the buttons are pressed from the basic summary to what is being addressed and then, to avoid an overly complex display, exposure information only appears once the release is pressed lightly. A repeater LCD is provided across the bottom of the finder with only the information shown that is needed in a shooting situation.

The grip is substantial and contains the battery pack, accessed via a door in the base, plus the shutter release with a subtle, ridged bulge on the back immediately behind it to give the thumb some purchase. The back is quite smooth but I don’t find that makes it feel insecure in the hand at all though it did receive some criticism. I briefly had an F90 which had a rubbery coating on a similar shaped back but this quickly became tacky and most owners removed it exposing the same smooth back as the F801. Nikon may have applied the coating to answer the criticism of the smooth back, the F90 coming just after the Nikon F801 and sharing the same body design.

The prism housing is topped by a dedicated hot shoe and strap lugs are provided at each end of the body.

Cosmetically, my camera is in quite good condition even though it has clearly been well used to judge by the scratches and wear patches. The screen printing on the most used buttons has partly worn off in places, something that afflicts many later cameras when the usual engraving and enamel fill was abandoned.

Photos

The results below are all shot in and around Dunedin, down here in New Zealand. These examples are shot with my one remaining Nikon lens, an Ai’d Nikon 55mm/f3.5 Micro Nikkor, a Tamron 28-200 zoom and a Tamron Adaptall 17mm on Rollei Infra Red film and Ilford FP4+. I process everything in Rodinal, which is super economical and keeps forever. Most Rollei examples were shot as normal panchromatic film with some frames shot with the R72 opaque IR filter in place. Exposures can be with or without the IR filter on the same roll which is a useful option with this film. The Rollei shots are quite contrasty, especially the IR filtered ones and even without a filter blue skies retain good tone and the grain is fine but well defined. The FP4+ example has smoother, still finer grain and good contrast even when taken in rainy weather.

Forsyth-Barr Stadium, Dunedin.Cathedral in the Octagon, Dunedin.In the Octagon, DunedinForsyth-Barr Stadium, Dunedin.Peter Pan bronze, Dunedin Botanic Gardens.Sad memorial in the Northern Cemetry, Dunedin.Memorial to an early New Zealand politician and local dignitory

Specifications

BODY

Lens release: button on the left side of the lens mount
Focus modes: Autofocus and Manual with electronic rangefinder
Autofocus modes: single servo AF with focus priority and continous servo AF with release priority
AF detection system: TTL phase detection system — Nikon Advanced AM200 module
AF detection range: EV minus 1 to EV 19 at ISO 100.
AF lock: possible in single servo AF mode once a stationary subject is in focus as long as the shutter button is depressed; in continuous servo AF
Electronic rangefinder: available in manual focus mode with an AF Nikkor and other AI-type Nikkor lenses with a maximum aperture of f/5.6 or faster
Depth of Field preview button: on the right side of the lens mount
Shutter: Electromagnetically controlled vertical-travel focal-plane metal shutter,
Shutter release: by motor trigger, automatic motor drive winding and cocking,
Frame counter: additive type, counts back while film is rewinding, auto-resets
LCD panel information: shutter speed, aperture, exposure mode, metering system, film speed, DX mark, electronic analogue display, exposure compensation mark, frame counter/self timer/multiple exposure, exposure compensation value, film advance mode, film loading, film rewind, self timer, panel on the right of the top plate
Command input control dial: a thumb wheel, on the right of the top plate
Viewfinder/LCD panel illumination: by pressing button on the back side of the top plate
Viewfinder: fixed eyelevel SLR pentaprism, high-eyepoint type, w/ Eyepiece hood
Focusing Screen: Fixed Nikon advanced B-type Bright-View screen, interchangeable with E-type screen
Viewfinder information: focus indications, exposure mode, shutter speed/ISO, aperture/exposure compensation, electronic analogue display, exposure compensation mark and flash-ready are all shown in LCD readout, also shows flash recommended/ready light LEDs
Exposure meter: Matrix metering, centre-weighted metering (75/25) (spot metering on F-801S/N8008S)
Film speed range: 6-6400 ASA, setting: DX code or by manual override, setting by the LCD display and the mode knob on the multi-settings dial on the left of the top plate
Metering range: EV 0 to 21
Exposure modes: fully Programmed auto-multi, shutter priority auto, aperture priority auto and manual, setting by the LCD display and the mode knob on the multi-settings dial on the left of the top plate
Programmed auto exposure control: Both shutter speed and aperture are set automatically, 1 EV increments of aperture is possible
Exposure compensation: within +/- 5 EV range in 1/3 EV steps, button on the front of the LCD display
Auto exposure lock: by sliding the AE-L lever on the back side of the top plate, while the meter is on
Multiple exposure button: the knob on the multi-settings dial on the left of the top plate coupled with rewind release button, up to 9 exposures can be set
Film loading: film automatically advances to first frame when shutter release button is depressed once
Film advance: in single-frame shooting mode, film automatically advances one frame when shutter is released; in continuous high or continuous low shooting modes, shots are taken as long as shutter release button is depressed; high speed 3.3 fps; low 2.0 fps.
Film rewind: by simultaneously pressing buttons with red rewind markings in front of the LCD display and the knob on the multi-settings dial on the left of the top plate, rewind stops auotomatically when film is rewound
Flash synch. X, 1/60 to 1/250
Self-timer: electronically controlled; timer duration selectable from 2 to 30 seconds in one second increments, blinking red LED on the front of the hand grip, indicates self-timer operation, cancellable, button on the left of the top plate
Remote control terminal: on the left-front side of the camera, w/ a lid
Back cover: hinged, interchangeable with Nikon Multi-Control Back MF-21 or World Time Data Back MF-20, w/ film cartridge confirmation window
Others: Hot-shoe; Tripod socket 1/4 inch; Strap lugs
Body: metal; Weight 695g, wo/lens
Battery: 4 AA alkaline batteries, battery chamber opens by a screw on the right bottom side of the camera and the battery holder slides out

LENS

This lens data belongs to the lens in the photos, there are many Nikkor lenses available for F-801

AF Nikkor 24-50mm f/3.3-f/4.5, filter thread 62mm
Mount: Nikon F bayonet
Zooming: manual, the ring and scale on the lens
Aperture: f/3.3-f/22, setting: auto or manual by the ring and scale on the lens, w/ a lock button on it, locks at f/22
Focus range: 0.6-10m + inf, with macro facility
