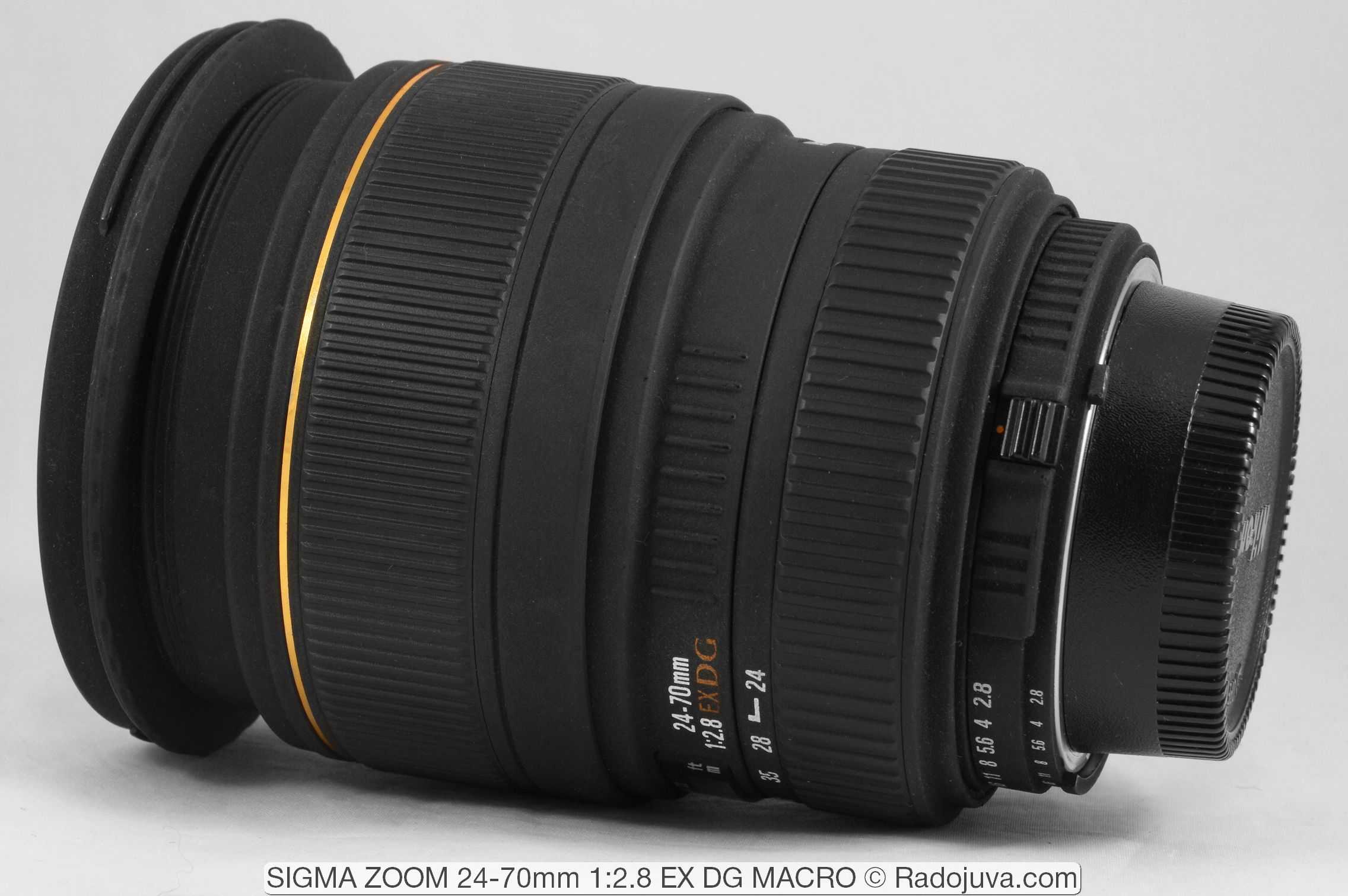

SIGMA ZOOM 24-70mm 1:2.8 EX DG MACRO ремонт. Япония уже не та
Я давно живу на свете и застал времена, когда японское было не то, чтобы эталоном качества, а вообще запредельное.И дело не втом, что сравнивать было не счем, ну разве что с советским или гэдээровским.Японское реально было лучшее. Уменя телик panasonic работает, а куплен был ещё в «Берёзке».Сейчас я чиню объективы, почти все японские и эйфория по поводу японского качества пропала.За один месяц 2 минолты 80-200 2.8, которые зверской автофокусировкой разбивают сами себя.И косяком пошли заклинившие сигмы 24-70 2.8 и по зуму и по автофокусу.»Вера в человечество» потихоньку теряется.Хорошее про эту сигму сказать всё таки можно.Хорошо потрудились конструкторы в части общей конструкции.Объектив разбирается буквально в три шага.

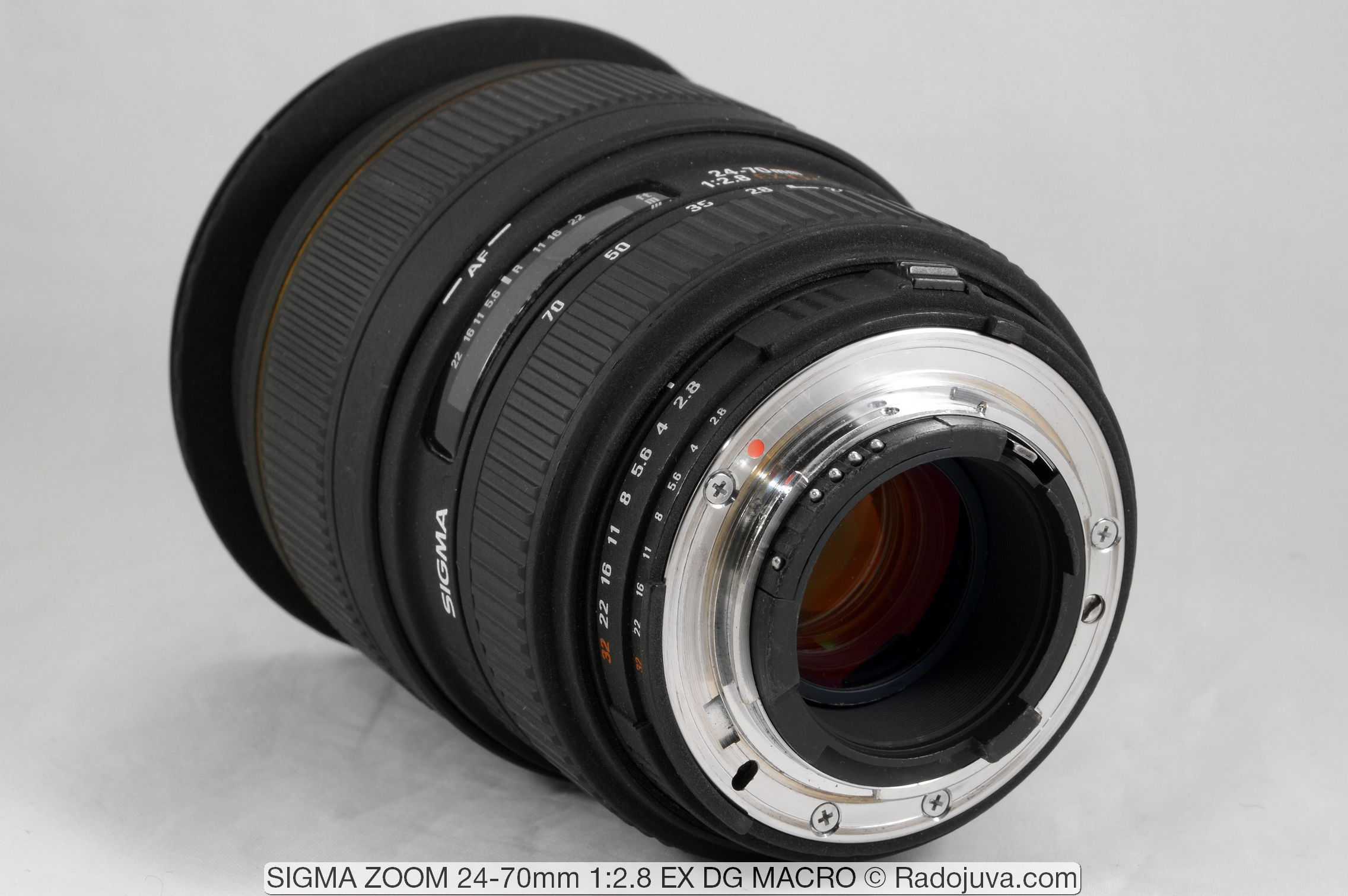

стандартно снимаем байонет вместе с кольцом установки диафрагмы
платы электроники почти нет, не трогаем шестерёнки автофокуса и плату, откручиваем три винта крепления корпуса
под резинкой отклеиваем металлическую пластинку и снимаем гребёнку контактов
откручиваем винт втулки привода зума и вынимаем втулкудолжен сняться корпускорпус не снимается, внутри что то не пускаетвытряхиваю все осколки и прочие сломанные втулки, всё равно не снимается корпусдолбаюсь полчаса, это при том, что я на 100% знаю, что должен сняться
таки снял, выкрутился винт детали привода зума и не пускал корпусвинт мог выкрутиться просто в процессе эксплуатации, мог выкрутиться, когда сломались втулки (об этом ниже) зума и кольцо зуммирования крутили с большим усилием

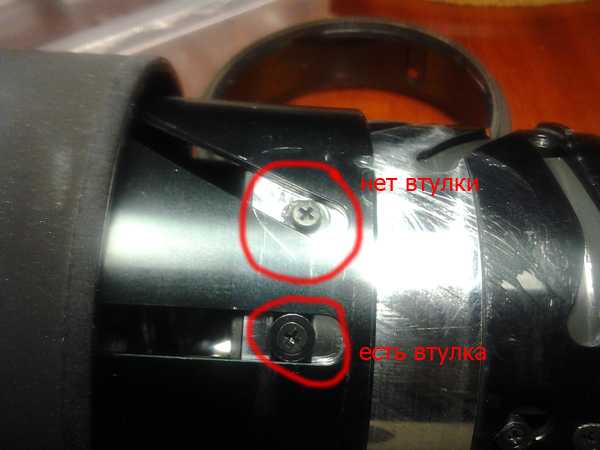

снял корпус и всё видно сразу, это плюс конструкциитри втулки зума развалились
это, как пример, я делал давно, там втулки были нормальные
осколки остались, многие вывалились раньшевтулки сложной конструкции, выточить можно в часовой мастерской, но будет дрого
далее подбираемся к фокусутам небольшой конструктивный косячок, титульное кольцо алюминий, а корпус пластикрезиновый съёмник не всегда открутит, я сделал под ключ две луночки

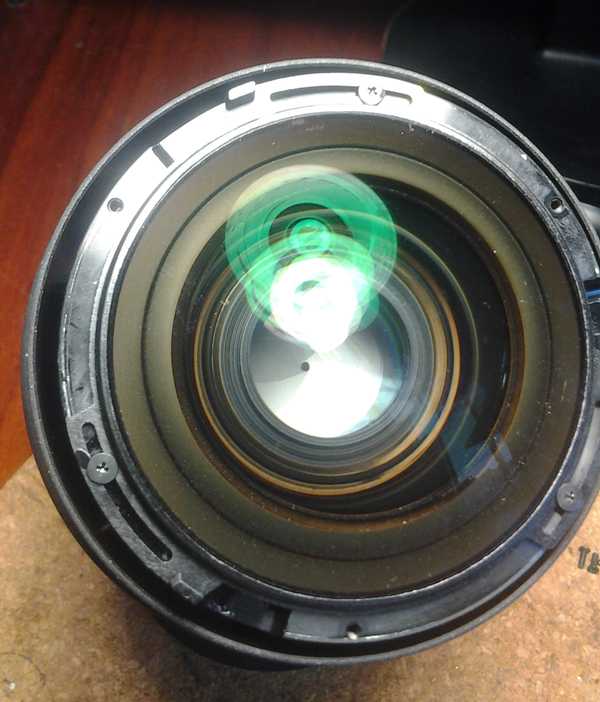

корпус передней линзы снимается, другие три винта крепят саму линзу и она юстируется вращением
и переходим к втулкам фокусировки
как то такну какое это японское качество?а сигма стоит под тридцатник рублейне покупайтекак снимает не знаю, сигмой не снимаю, а после ремонтов и не хочется на ебее знают эти ремонты, есть предложения, хоть и немного
вот и покупайте втулки по 50 баксовУспехов в фотографии.
